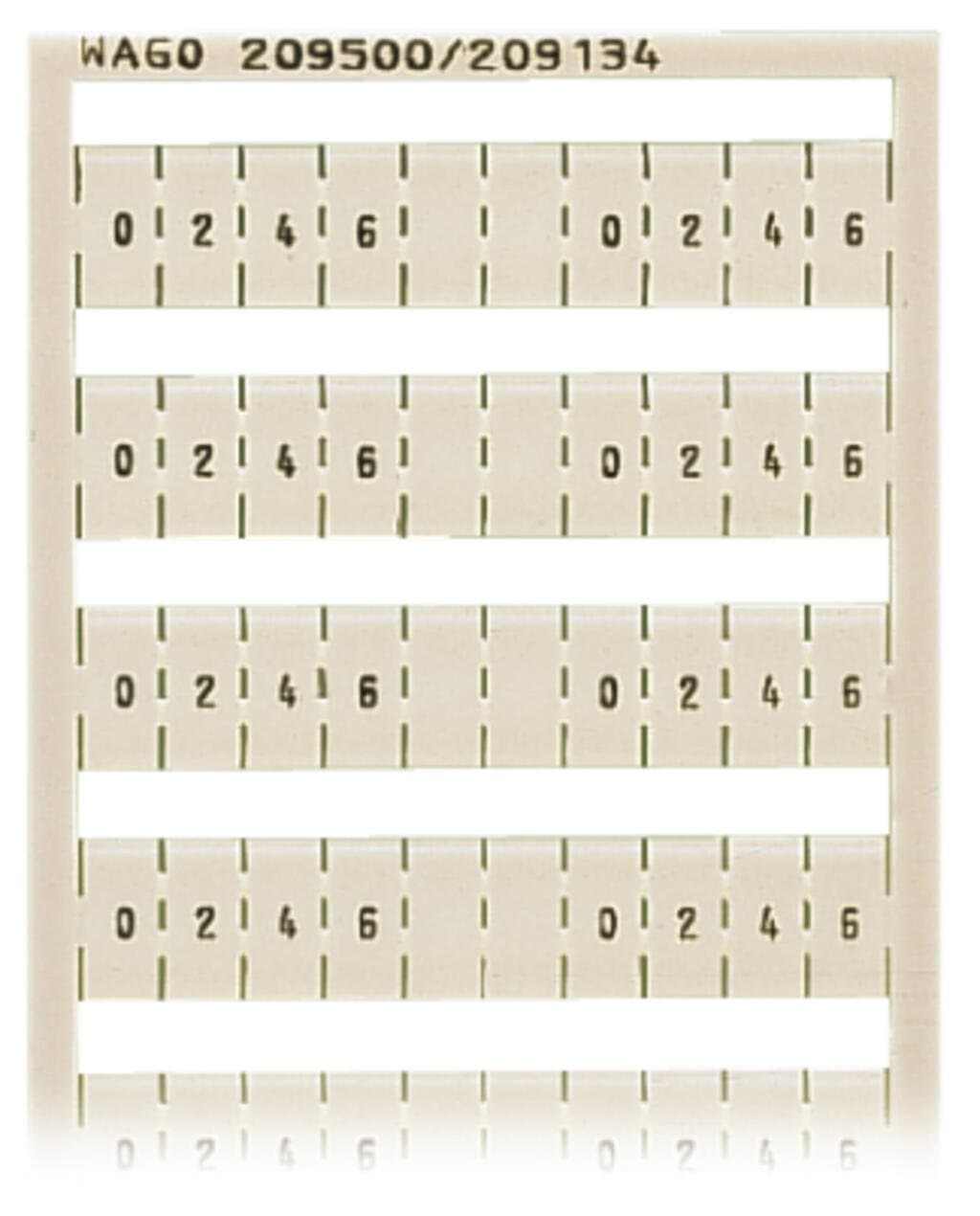

Product Model
209-500/209-134
Selling Points
- 1The WAGO 209-500/209-134 offers precise horizontal markings for accurate identification.
- 2Easy to use with a snap-on design, ensuring quick and secure placement.
- 3Durable white color ensures clear visibility even in harsh environments.
- 4The marking card is not stretchable, maintaining its integrity and accuracy.
- 5Suitable for various applications, including rail and chassis mount terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Thermal transfer | Marking | 0, 2, 4, 6, , , 0, 2, 4, 6; (5x) / 1, 3, 5, 7, , ,1, 3, 5, 7; (5x) |
Marking direction | Horizontal marking | Marking color | black |
Marking type | Numbers | Marking differentiation | Consecutive numbers per strip |
Delivery form | Marker card | Delivery form configuration | 10 strips with 10 markers per card |
Flammability class per UL94 | V2 | Marker/strip width | 5?mm |
Marker width | 5mm | Smear resistance | EN 60998-1:2004 |
Color | white | UV resistance | EN 60068-2-5:2010 Procedure B |
Halogen-free | Yes | Weight | 7.8g |
Fire load | 0.234MJ | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-37 | eCl@ss 9.0 | 27-14-11-37 |
ETIM 9.0 | EC000761 | ETIM 8.0 | EC000761 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(5)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332037297 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
