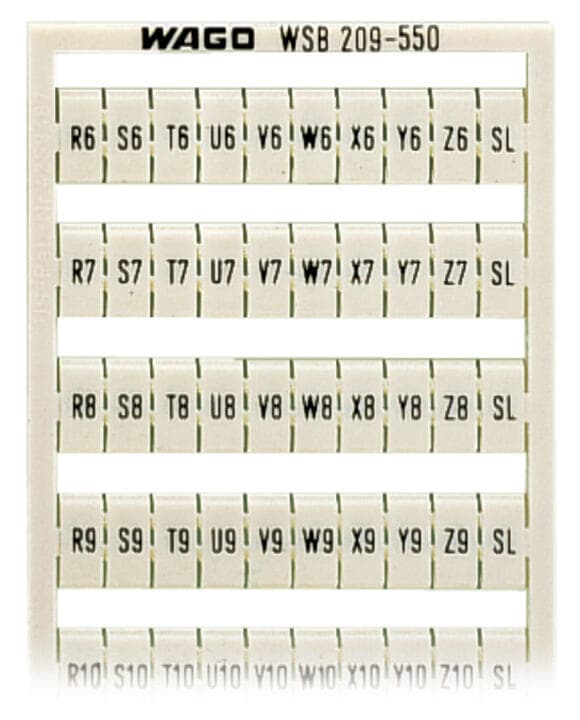

Product Model
209-550
Selling Points
- 1The WAGO 209-550 features a horizontal marking system, ensuring precise and consistent markings.
- 2Designed with a snap-on mechanism, this marking card is easy to install and remove.
- 3Made from halogen-free material, it meets stringent environmental compliance standards.
- 4Compatible with various terminal blocks (R6 to R10, S6 to S10, etc.), making it versatile for different applications.
- 5Constructed with a robust design, the WAGO 209-550 withstands repeated use and maintains its marking quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Thermal transfer | Marking | R6, S6, T6, …, Y6, Z6, SL to R10,S10, T10, …, Y10, Z10, SL |
Marking (number) | 2 | Marking direction | Horizontal marking |
Marking color | black | Marking type | Symbol |
Marking differentiation | Consecutive symbols each strip | Delivery form | Marker card |
Delivery form configuration | 10 strips with 10 markers per card | Flammability class per UL94 | V2 |
Marker/strip width | 5?mm | Marker width | 5mm |
Smear resistance | EN 60998-1:2004 | Color | white |
UV resistance | EN 60068-2-5:2010 Procedure B | Halogen-free | Yes |
Weight | 7.8g | Fire load | 0.234MJ |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(5)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332274975 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
