Product Model
209-967
Selling Points
- 1Vertical Marking: The WAGO 209-967 features vertical marking for precise and efficient labeling.
- 2Compliant with RoHS: This product is compliant with RoHS environmental standards, ensuring eco-friendly use.
- 3Snap-on Type: Easy to install with a snap-on design, reducing installation time and effort.
- 4UV Resistant: Markers are UV resistant according to EN 60068-2-52010 Procedure B, ensuring durability over time.
- 5High-Quality Markers: Smear-resistant markers in white color, halogen-free, and fire load of 0.234 MJ for reliable marking performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

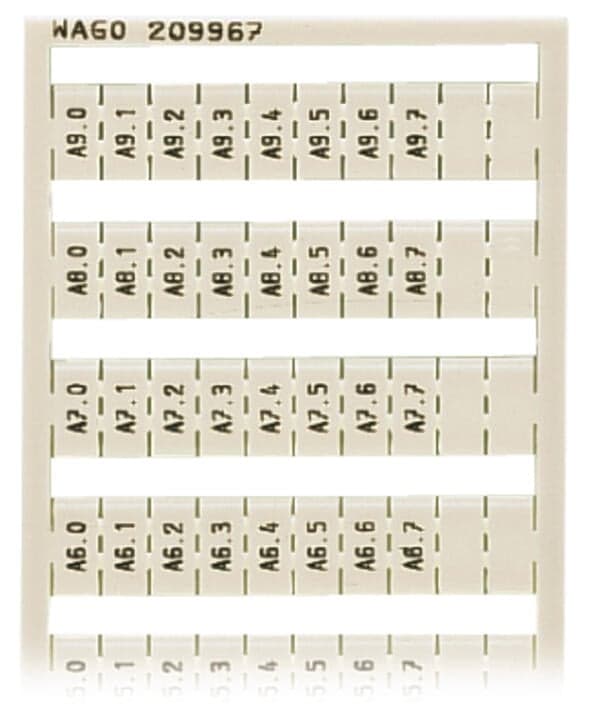

Marking method | Thermal transfer | Marking | A0.0, A0.1, …, A9.6, A9.7 |
Marking (number) | 1 | Marking direction | Vertical marking |
Marking color | black | Marking type | Symbol |
Marking differentiation | Consecutive symbols each strip | Delivery form | Marker card |
Delivery form configuration | 10 strips with 10 markers per card | Flammability class per UL94 | V2 |
Marker/strip width | 5?mm | Marker width | 5mm |
Smear resistance | EN 60998-1:2004 | Color | white |
UV resistance | EN 60068-2-5:2010 Procedure B | Halogen-free | Yes |
Weight | 7.8g | Fire load | 0.234MJ |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(5)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332101721 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
