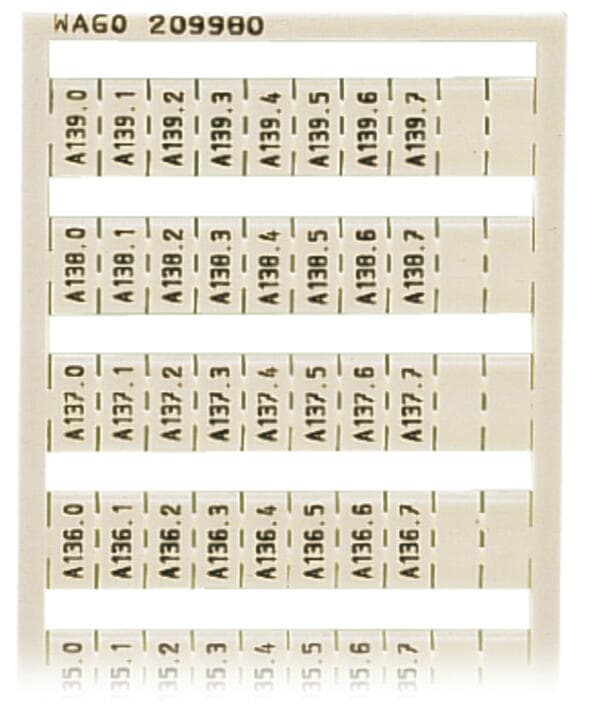

Product Model
209-980
Selling Points
- 1Vertical Marking: Snap-on type, vertical marking for precise identification.
- 2Consecutive Symbols: Marked with consecutive symbols A130.0 to A139.7 for easy tracking.
- 3Halogen-Free: Compliant with RoHS regulations, ensuring environmental safety.
- 4Snap-On Design: Easy to attach and remove from terminal blocks.
- 5Durable Material: Made of high-quality, fire-resistant material (UL94 V2).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Thermal transfer | Marking | A130.0, A130.1, …, A139.6, A139.7 |
Marking (number) | 1 | Marking direction | Vertical marking |
Marking color | black | Marking type | Symbol |
Marking differentiation | Consecutive symbols each strip | Delivery form | Marker card |
Delivery form configuration | 10 strips with 10 markers per card | Flammability class per UL94 | V2 |
Marker/strip width | 5?mm | Marker width | 5mm |
Smear resistance | EN 60998-1:2004 | Color | white |
UV resistance | EN 60068-2-5:2010 Procedure B | Halogen-free | Yes |
Weight | 7.8g | Fire load | 0.234MJ |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(5)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332275651 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
