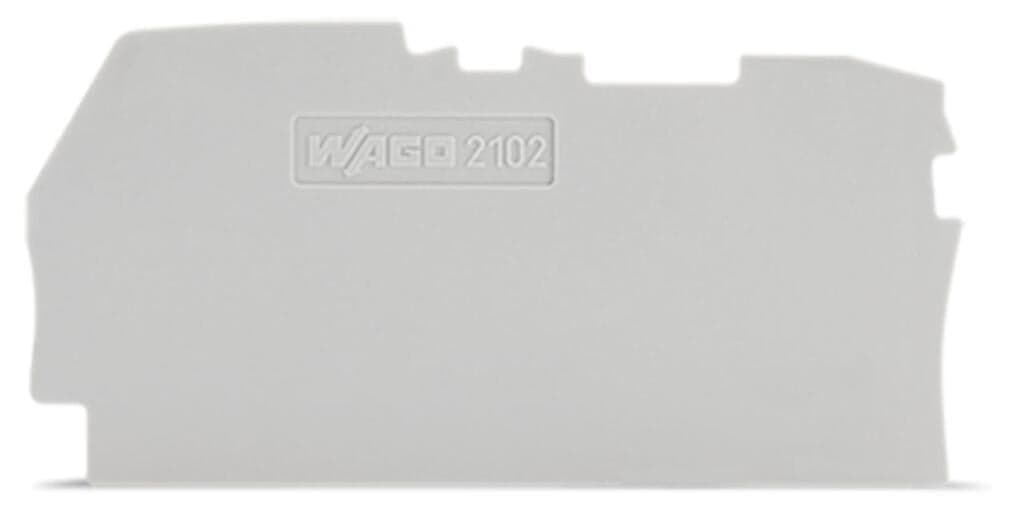

Product Model
2102-1291
Selling Points
- 1Durable construction with 0.8 mm thickness.
- 2Gray color for easy identification.
- 3Fits DIN-35 rail for versatile installation.
- 4ROHS compliant for environmental safety.
- 5Ideal for industrial applications and modern building installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 0.8?mm?/ 0.031?inches | Height | 61.5?mm?/ 2.421?inches |
Depth | 33?mm?/ 1.299?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.07MJ |
Weight | 1.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143745345 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
