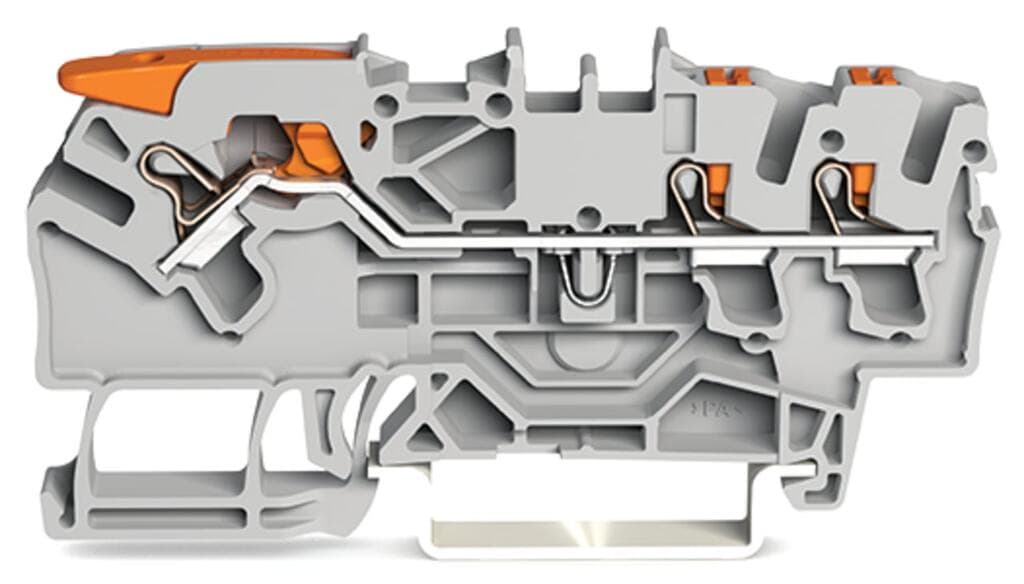

Product Model
2102-5301
Selling Points
- 1Compact Design: 72.2 mm depth, 5.2 mm width, ideal for DIN rail mounting.
- 2Versatile Actuation: Push-in and lever actuation for easy connection and disconnection.
- 3High Current Rating: Rated for 24 A, suitable for demanding applications.
- 4Test Port Included: Side and center marking with a test port for easy diagnostics.
- 5Durable Construction: Made from gray polyamide (PA66) insulation, resistant to temperatures from -35 to +85°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 5.2?mm?/ 0.205?inches | Height | 72.2?mm?/ 2.843?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.186MJ |
Actuator color | orange | Weight | 8.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143741927 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 18 ATEX 1010 U / IECEx: PTB 18.0001U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 24A | Current at conductor cross-section (max.) mm2 | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 20A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 20A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 20.5A | Rated current (Ex e II) with jumper | 20A |
Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring | Actuation type 2 | Push-button |
Specifications may be subject to change without notice
