wagoRail Chassis Terminal Blocks
Product Model

2102-5307

Manufacturer

wago

Category

Rail Chassis Terminal Blocks

Product ID

43828

In Stock
Last updated: 2025/4/18
View Specifications

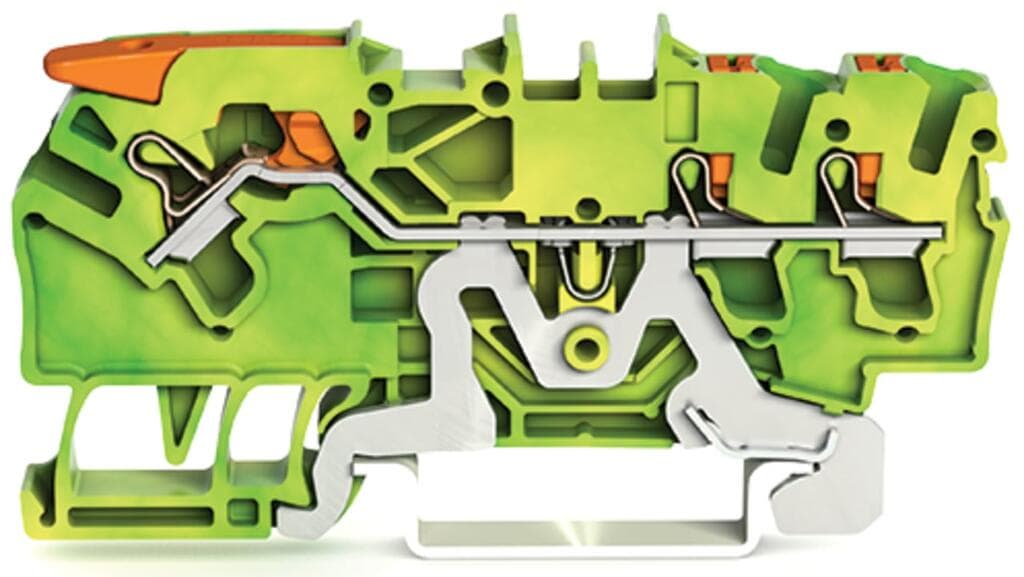

wago 2102-5307

Selling Points

  • 1Fast, vibration-resistant connections with push-in CAGE CLAMP technology.
  • 2Compatible with 22-12 AWG conductors and DIN-35 rail mounting.
  • 3Built-in test ports simplify testing and troubleshooting.
  • 4ROHS compliant and UL, CSA, ATEX approved for safety.
  • 5Green-yellow color with polyamide (PA66) insulation material.
Product Details
2102-5307
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
3
Total number of potentials
1
Number of levels
1
Number of jumper slots
2
Width
5.2?mm?/ 0.205?inches
Height
72.2?mm?/ 2.843?inches
Depth from upper-edge of DIN-rail
32.9?mm?/ 1.295?inches
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
green-yellow
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.182MJ
Actuator color
orange
Weight
11.1g
Continuous operating temperature
-60 … +105?°C
eCl@ss 10.0
27-14-11-41
eCl@ss 9.0
27-14-11-41
ETIM 9.0
EC000901
ETIM 8.0
EC000901
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
PL
GTIN
4055143742009
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60947-7-2
Rated voltage UL (Use Group B)
600V
Rated voltage UL (Use Group C)
600V
Reference hazardous areas
See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Connection technology
Push-in CAGE CLAMP?
Actuation type
Lever
Connectable conductor materials
Copper
Nominal cross-section
2.5 mm2
Solid conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination
0.75 … 4?mm2?/ 18 … 12?AWG
Fine-stranded conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination
1 … 2.5?mm2?/ 18 … 14?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
10 … 12?mm?/ 0.39 … 0.47?inches
Wiring direction
Front-entry wiring
Actuation type 2
Push-button

Specifications may be subject to change without notice
