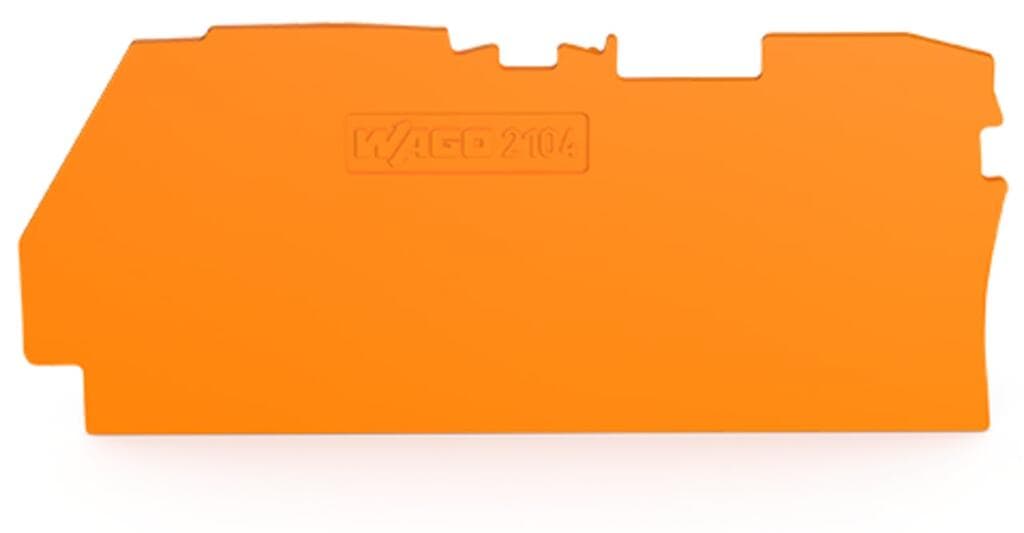

Product Model
2104-1292
Selling Points
- 11mm thick, high-quality material for long-lasting performance.
- 2Snap-on mounting type for quick and secure installation.
- 3Flammability class V0, ensuring safety in various applications.
- 4Designed for use with WAGO TOPJOB S terminal blocks, ideal for 2 conductor 4mm² terminals.
- 5Dimensions: 69.5mm x 1mm x 30.5mm, minimizing space on DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 69.5?mm?/ 2.736?inches |
Depth | 30.5?mm?/ 1.201?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.066MJ |
Weight | 2.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4055143975384 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
