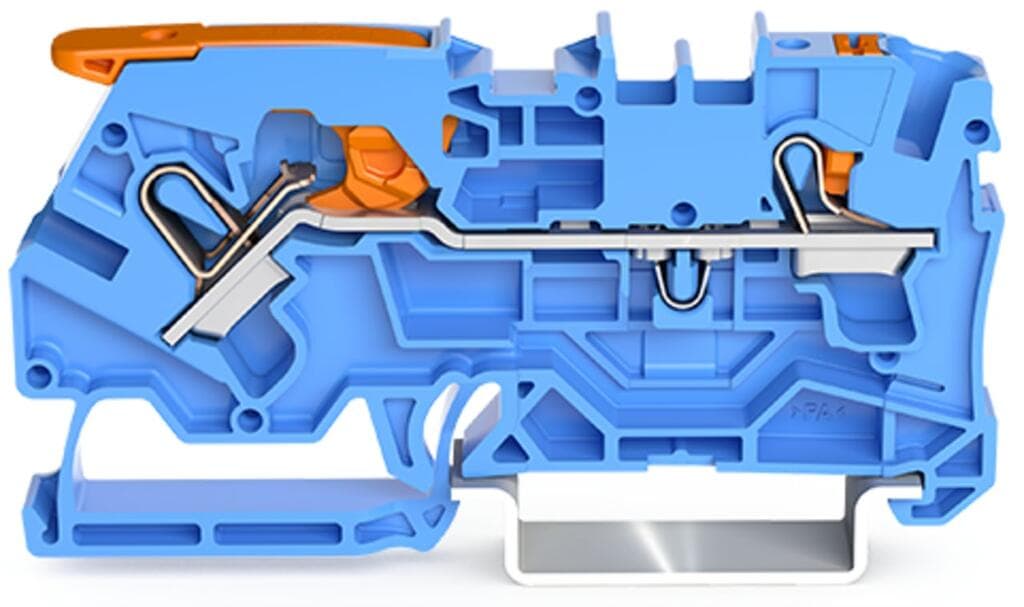

Product Model
2104-5204
Selling Points
- 1Secure and reliable connections with Push-in CAGE CLAMP technology.
- 2Suitable for wire sizes from 0.5mm² to 6mm².
- 3Ideal for Ex i applications with a test port.
- 4Easy to mount on DIN-rails measuring 35 x 15 and 35 x 7.5.
- 5Rated for currents up to 32A and 40A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 6.2?mm?/ 0.244?inches | Height | 70?mm?/ 2.756?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.219MJ |
Actuator color | orange | Weight | 10.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4055143992534 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 20 ATEX 1006 U / IECEx: PTB 20.0012U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 32A | Current at conductor cross-section (max.) mm2 | 40A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 30A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 30A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 30A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 30A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 28A | Power loss, per pole (potential) | 1.362W |
Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
Actuation type 2 | Push-button |
Specifications may be subject to change without notice
