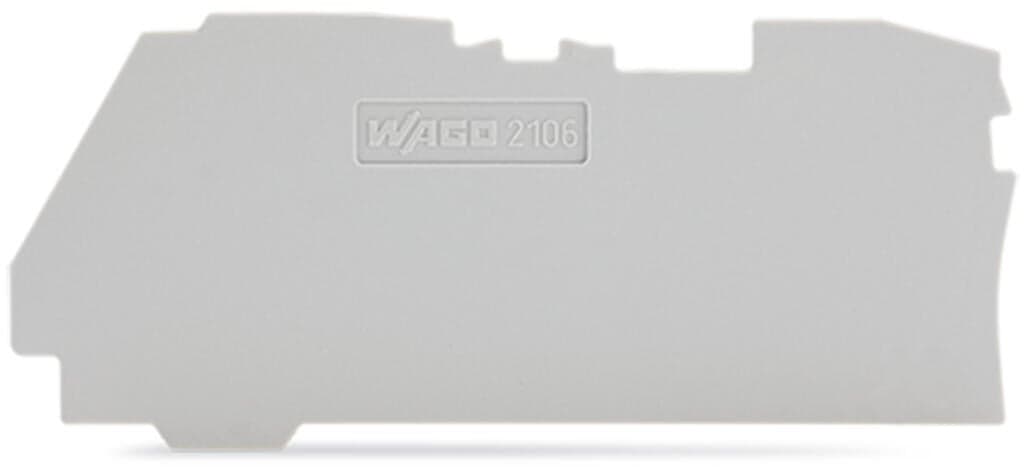

Product Model
2106-1291
Selling Points
- 1High-Quality Material: Made from robust 1 mm thick material for long-lasting performance.
- 2Snap-On Compatible: Designed for use with Snap-On mounted applications, ensuring secure connections.
- 3Gray Color: Available in a durable gray color for easy identification.
- 4UL94 Compliant: Meets stringent safety standards with UL94 compliance.
- 5RoHS Compliant: Environmentally friendly, adhering to RoHS regulations for reduced environmental impact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 74.8?mm?/ 2.945?inches |
Depth | 32.9?mm?/ 1.295?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.101MJ |
Weight | 2.4g | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143745383 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
