Product Model
2106-1392
Selling Points

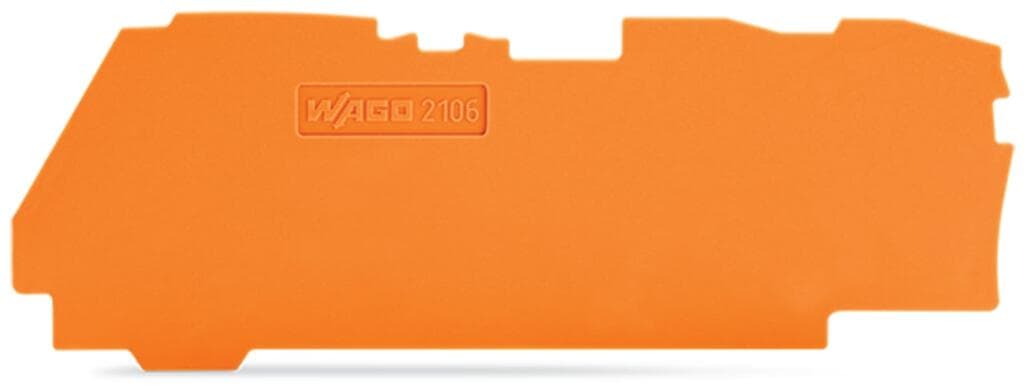

- 1Orange Color for Visibility: The plate is orange in color, enhancing visibility in industrial settings.
- 21mm Thickness for Precision: Made with a 1mm thickness, providing premium performance without taking up too much space on the DIN rail.
- 3Flammability Class V0: Meets high safety standards with a flammability class of V0.
- 4Compatibility with 2106 Series: Specifically designed for use with WAGO's 2106 series 3-conductor terminal blocks.
- 5RoHS Compliant: Compliant with RoHS regulations, ensuring environmental safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 90.8?mm?/ 3.575?inches |
Depth | 32.9?mm?/ 1.295?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 2.9g |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143745413 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
