Product Model

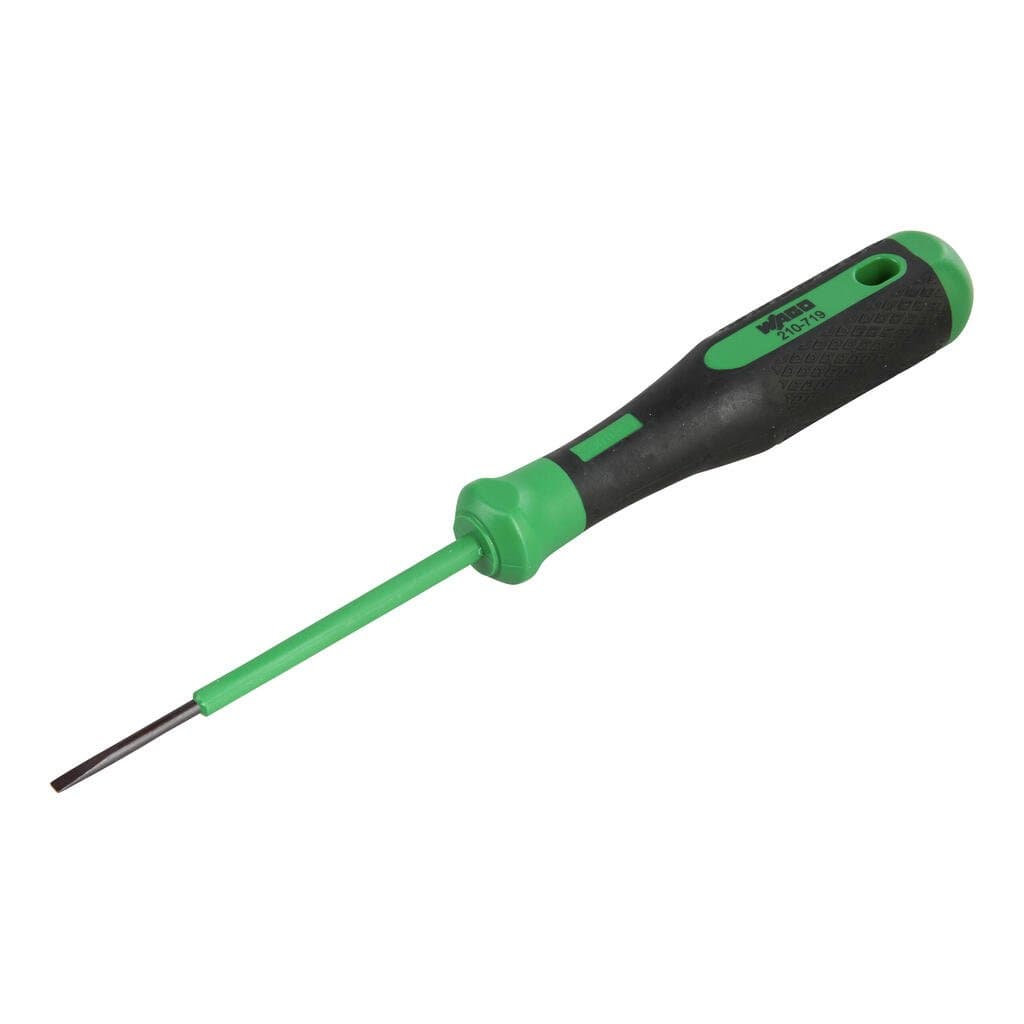

210-719
Selling Points
- 1Ideal for terminal blocks with a partially insulated shaft.
- 2Precise operation of CAGE CLAMP-equipped terminal blocks.
- 3Compact design for reduced cabinet space.
- 4Lightweight and comfortable handling.
- 5Suitable for use with front-entry din-rail terminals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of spacings | 1-way | Width | 21 mm / 0.827 inches |
Height | 21 mm / 0.827 inches | Depth | 175 mm / 6.89 inches |
Blade width | 0.4mm | Blade length | 2.5mm |
Weight | 26g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 21-04-04-07 | eCl@ss 9.0 | 21-04-04-07 |
ETIM 9.0 | EC000158 | ETIM 8.0 | EC000158 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(1)?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4045454937386 | Customs tariff number | 8205595560 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
