Product Model
2110-1291
Selling Points

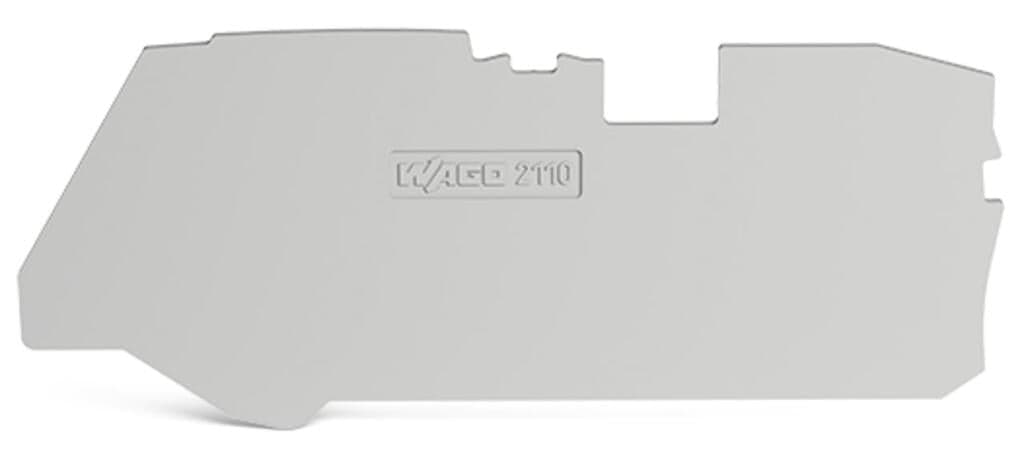

- 1Gray-colored component with 1mm thickness.
- 2Ideal for TOPJOB S series applications.
- 3High-quality construction for reliable performance.
- 4Compact design for space-efficient installations.
- 5Available in packs of 25 pieces (SPU: 100).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 88?mm?/ 3.465?inches |
Depth | 37.7?mm?/ 1.484?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.092MJ |
Weight | 3.2g | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143867665 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
