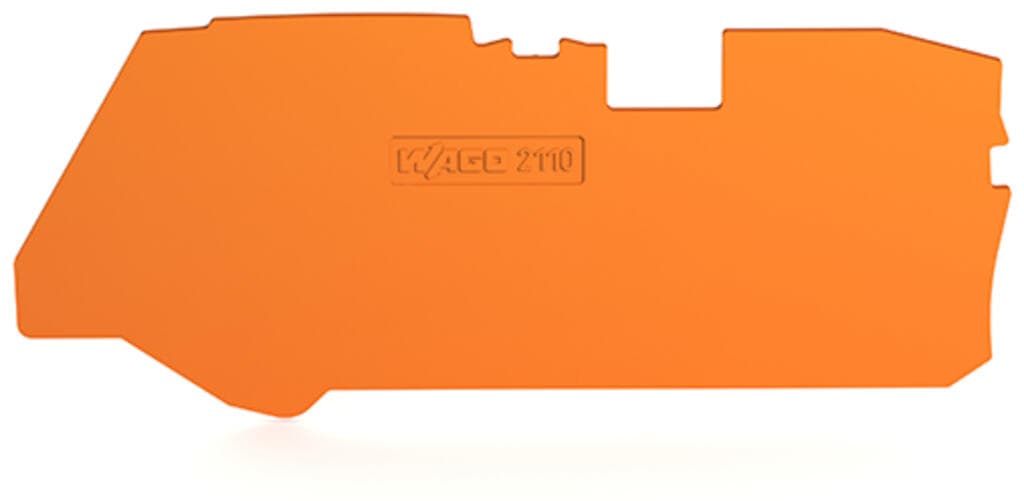

Product Model
2110-1292
Selling Points
- 1Flammability Class V0: Ensures high safety standards in electrical installations.
- 2Snap Fit Design: Easy to install and secure on DIN rails.
- 3Orange Color: Visually distinct for easy identification.
- 41 mm Thickness: Provides premium performance without occupying much space.
- 5Compatible with TOPJOB S: Designed for use with WAGO’s 2 conductor terminal blocks with levers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 88?mm?/ 3.465?inches |
Depth | 37.7?mm?/ 1.484?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 3.2g |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143867672 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
