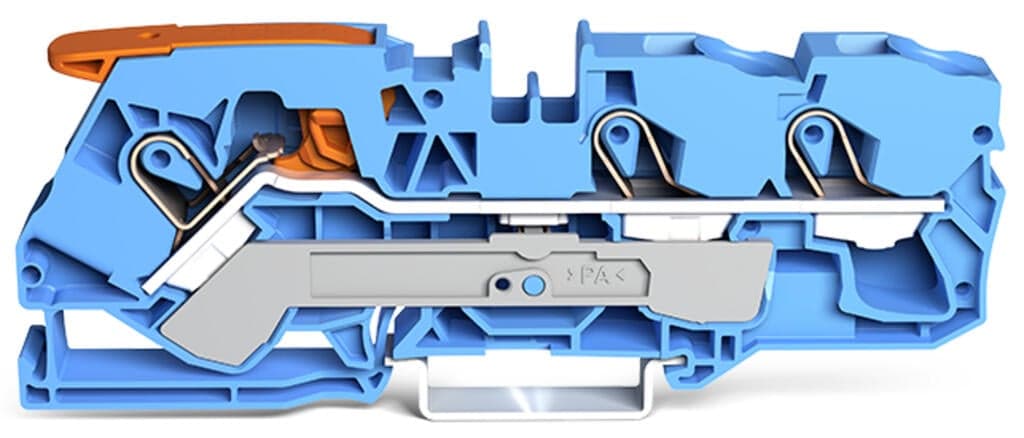

Product Model
2110-1304
Selling Points
- 1Built with high-quality materials for long-lasting performance.
- 2Push-in CAGE CLAMP technology simplifies conductor insertion and removal.
- 3Suitable for explosive environments, ensuring safety in critical applications.
- 4Supports 3-conductor connections with a cross-section range of 0.5 to 16 mm².
- 5Includes a test port and side and center marking slots for easy identification and testing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 10?mm?/ 0.394?inches | Height | 110.4?mm?/ 4.346?inches |
Depth from upper-edge of DIN-rail | 36.9?mm?/ 1.453?inches | Depth | 43.7 mm / 1.72 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.569MJ |
Actuator color | orange | Weight | 31.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143865197 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 19 ATEX 1017 U / IECEx: PTB 19.0047U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 57A | Current at conductor cross-section (max.) mm2 | 74A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 65A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 65A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 57A | Rated current (Ex e II) with jumper | 50A |
Power loss, per pole (potential) | 1.819W | Rated current I<sub>N</sub> for specified power loss | 57A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Connectable conductor materials | Copper |
Nominal cross-section | 10 mm2 | Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
Solid conductor; push-in termination | 4 … 16?mm2?/ 14 … 6?AWG | Fine-stranded conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with ferrule; push-in termination | 4 … 10?mm2?/ 12 … 8?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. | Strip length | 17 … 19?mm?/ 0.67 … 0.75?inches |
Wiring direction | Front-entry wiring | Actuation type 2 | Operating tool |
Specifications may be subject to change without notice
