Product Model

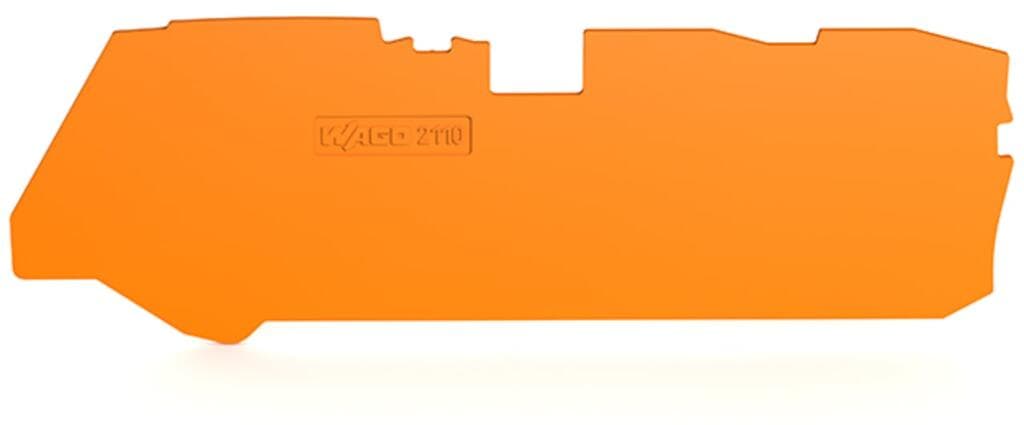

2110-1392
Selling Points
- 11 mm Thickness: Thin and compact design for easy installation.
- 2Orange Color: Visually distinct for easy identification in electrical systems.
- 3DIN Rail Mounting: Compatible with DIN rail systems for secure and organized wiring.
- 43-Conductor Compatibility: Designed to work seamlessly with 3-conductor terminal blocks.
- 5High-Quality Material: Made from durable, high-quality material ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 109.4?mm?/ 4.307?inches |
Depth | 37.7?mm?/ 1.484?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 3.8g |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143867726 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
