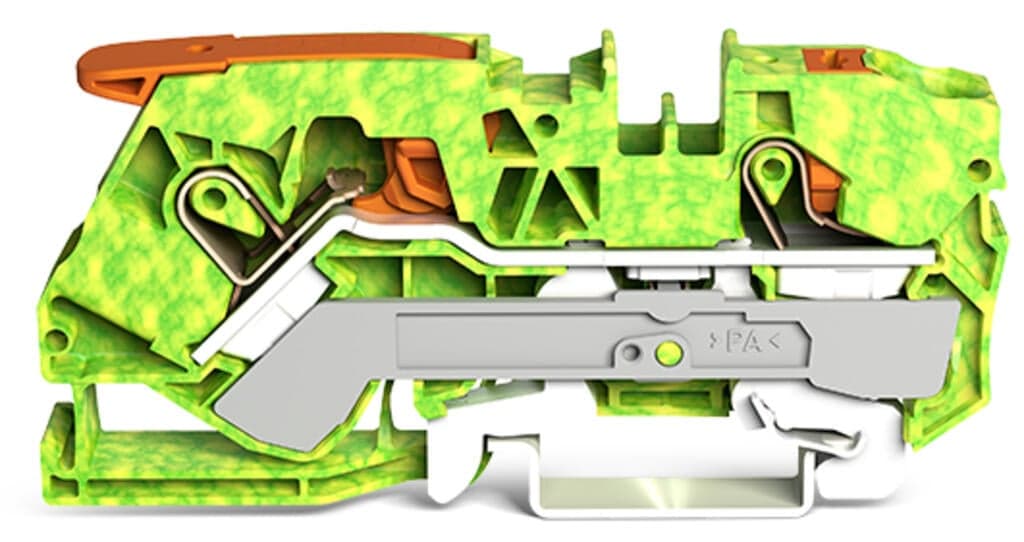

Product Model
2110-5207
Selling Points
- 1Built with high-quality materials for long-lasting performance.
- 2Push-in CAGE CLAMP connections simplify wiring.
- 3Suitable for wire sizes from 0.5mm² to 16mm² or #20AWG to #6AWG.
- 4RoHS compliant and no SVHC (23-Jan-2024).
- 5Designed for one grounding/protective-earth (1PE) connection with two wires.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 10?mm?/ 0.394?inches | Height | 89?mm?/ 3.504?inches |
Depth from upper-edge of DIN-rail | 36.9?mm?/ 1.453?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.113MJ | Actuator color | orange |
Weight | 37.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143904469 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-2 | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Connectable conductor materials | Copper | Nominal cross-section | 10 mm2 |
Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Solid conductor; push-in termination | 4 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 4 … 10?mm2?/ 12 … 8?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. |
Strip length | 17 … 19?mm?/ 0.67 … 0.75?inches | Wiring direction | Front-entry wiring |
Actuation type 2 | Push-button |
Specifications may be subject to change without notice
