Product Model
211-111
Selling Points
- 1Universal application for all control cabinet marking tasks.
- 2Economical marking thanks to low purchase costs and fast printing.
- 3User-friendly WAGO Marking Software Smart Script for easy operation.
- 4Long-lasting, indelible, scratch-proof printing for durability.
- 5Fast print speed of up to 127 mm/s with recommended 50.8 mm/s for precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Marking method | Thermal transfer | Marking | plain |

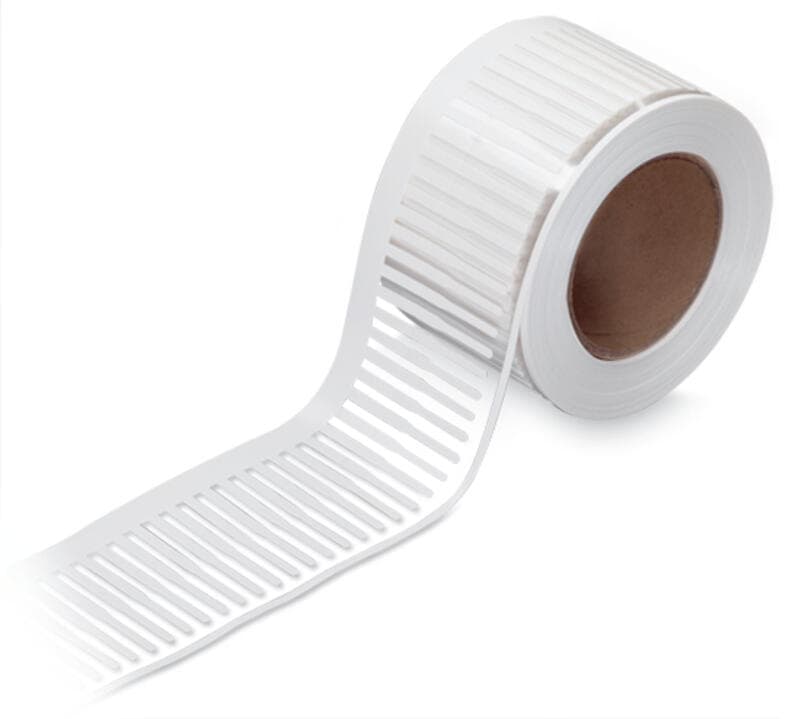

Delivery form | Roll | Delivery form configuration | 3000 markers/reel |
Printing device | TP 298+ | Depth | 0.35?mm |
Length | 12mm | Mounting type | Pushing in |
Color | white | UV resistance | EN 60068-2-5:2010 Procedure B |
Adhesive information | without adhesive | Halogen-free | Yes |
Weight | 520g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-40-06-29 | eCl@ss 9.0 | 27-40-06-29 |
ETIM 9.0 | EC001288 | ETIM 8.0 | EC001288 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454486044 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
