Product Model

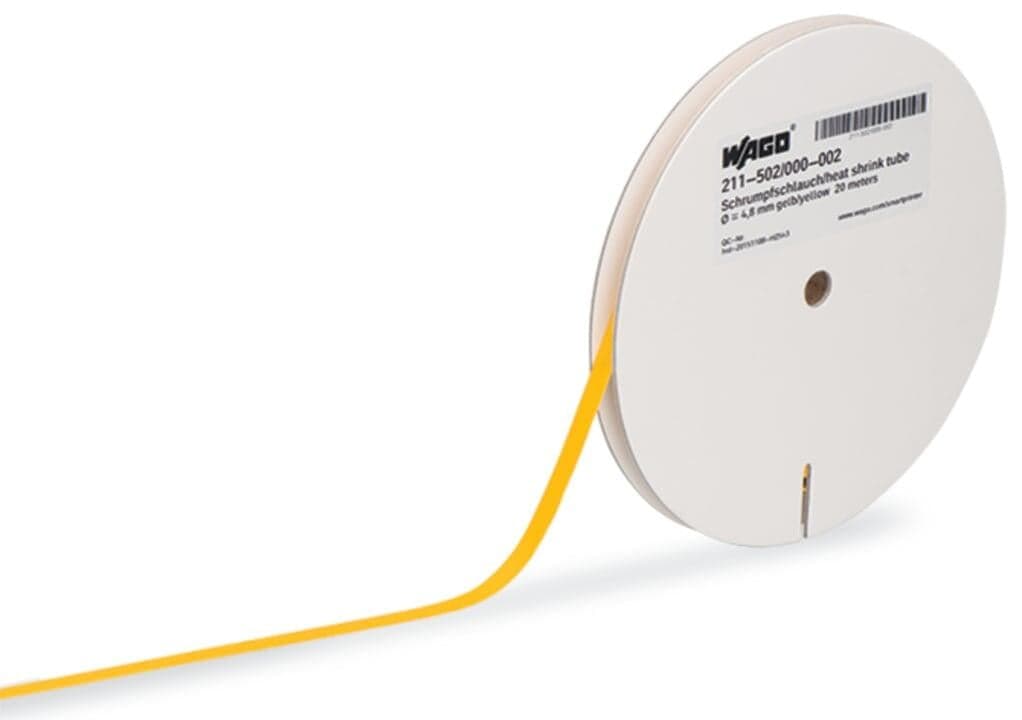

211-502/000-002
Selling Points
- 1Ideal for Smart Printers with thermal transfer marking.
- 2Halogen-free and UV-resistant for safe use.
- 3Available in a 20 m roll for convenient application.
- 4Suitable for wire cross-sections up to 2.5 mm².
- 5Compliant with EN 60068-2-5:2010 for high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for wire cross-section 1 … 2.5 mm2 | Marking method | Thermal transfer |
Delivery form | Roll | Delivery form configuration | 20 m/roll |
Printing device | Smart Printer (Thermal Transfer Printer) | Depth | 0.185?mm |
Mounting type | Sliding on conductor | Shrink rate | 2:1 |
Smear resistance | in conjunction with 258-5005 Ink Ribbon | Color | yellow |
Material | Polyolefin | UV resistance | EN 60068-2-5:2010 Procedure B |
Adhesive information | without adhesive | Halogen-free | Yes |
Weight | 235.4g | Ambient temperature (storage) | +10 … +25 °C |
Ambient temperature (operation) | -55 … +125 °C | Relative humidity | 45 … 55?% |
eCl@ss 10.0 | 27-40-04-01 | eCl@ss 9.0 | 27-40-04-01 |
ETIM 9.0 | EC001530 | ETIM 8.0 | EC001530 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DK |
GTIN | 4055143370264 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
