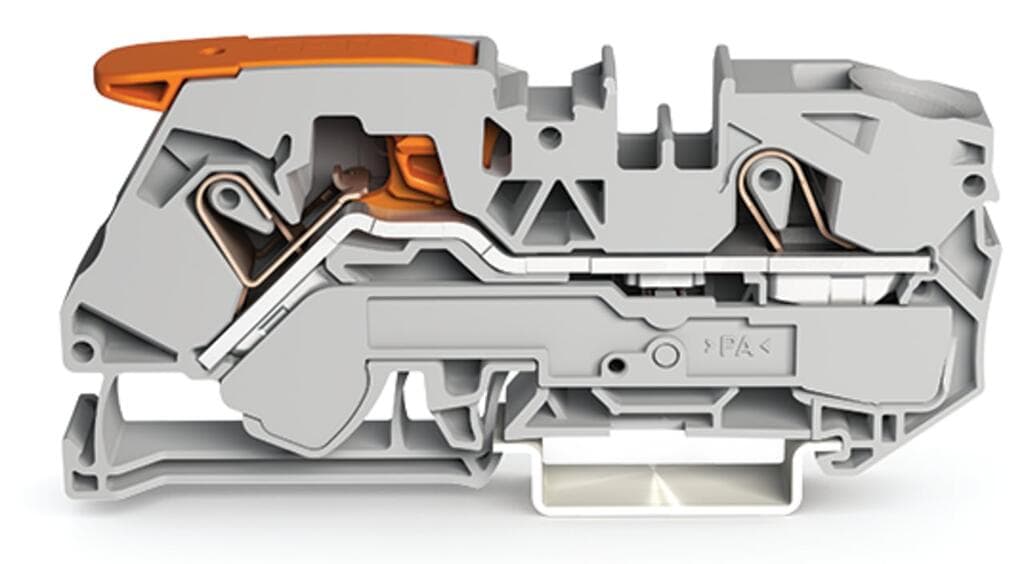

Product Model
2116-1201
Selling Points
- 1Push-in CAGE CLAMP Technology: Secure and reliable connection method.
- 2DIN-35 Rail Mounting: Easy installation on standard DIN rails.
- 3High Current Rating: Supports up to 76A rated current.
- 4Gray Color: Durable and visually appealing design.
- 5Test Port Included: Convenient for testing and verification purposes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 12?mm?/ 0.472?inches | Height | 91.5?mm?/ 3.602?inches |
Depth from upper-edge of DIN-rail | 36.9?mm?/ 1.453?inches | Depth | 43.7 mm / 1.72 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.65MJ |
Actuator color | orange | Weight | 32.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143754422 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 18 ATEX 1012 U / IECEx: PTB 18.0019U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 76A | Current at conductor cross-section (max.) mm2 | 90A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated current (note) | 15 mm high DIN-35 rails shall be used for a current load higher than 76 A! |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 85A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 85A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 85A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 85A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 76A |
Rated current (Ex e II) with jumper | 65A | Power loss, per pole (potential) | 2.426W |
Rated current I<sub>N</sub> for specified power loss | 76A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Connectable conductor materials | Copper | Nominal cross-section | 16 mm2 |
Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Solid conductor; push-in termination | 2.5 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 0.5 … 25?mm2?/ 20 … 4?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 16?mm2?/ 20 … 6?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 6 … 16?mm2?/ 10 … 6?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. |
Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches | Wiring direction | Front-entry wiring |
Actuation type 2 | Operating tool |
Specifications may be subject to change without notice
