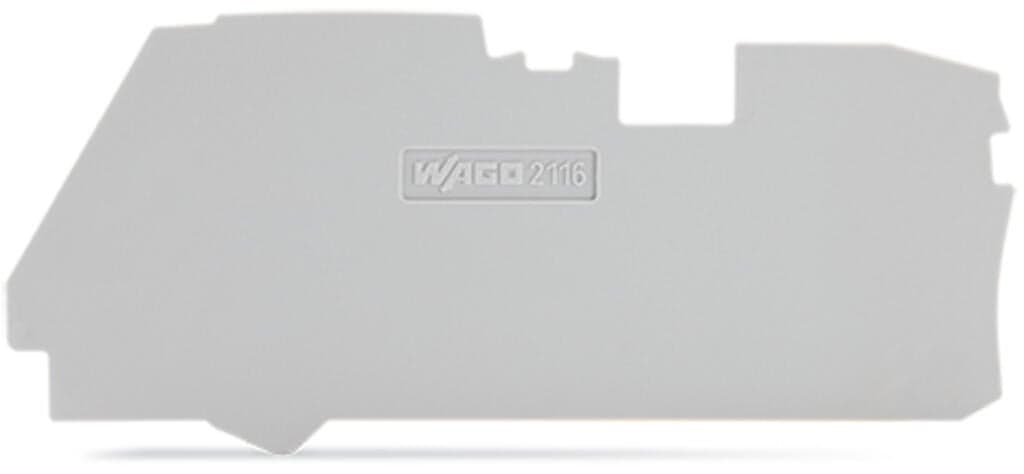

Product Model
2116-1291
Selling Points
- 1High-Quality Material: Made from 1 mm thick material for durability.
- 2Fire-Resistant: Meets 0.098 MJ fire load standards for safety.
- 3Snap-On Compatible: Designed for use with snap-on mounted terminal blocks.
- 4Gray Color: Easy to identify in electrical systems.
- 5Compact Dimensions: Measures 3.583 in H x 0.039 in W x 1.437 in D for space efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 91?mm?/ 3.583?inches |
Depth | 36.5?mm?/ 1.437?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.098MJ |
Weight | 3.2g | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143747547 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
