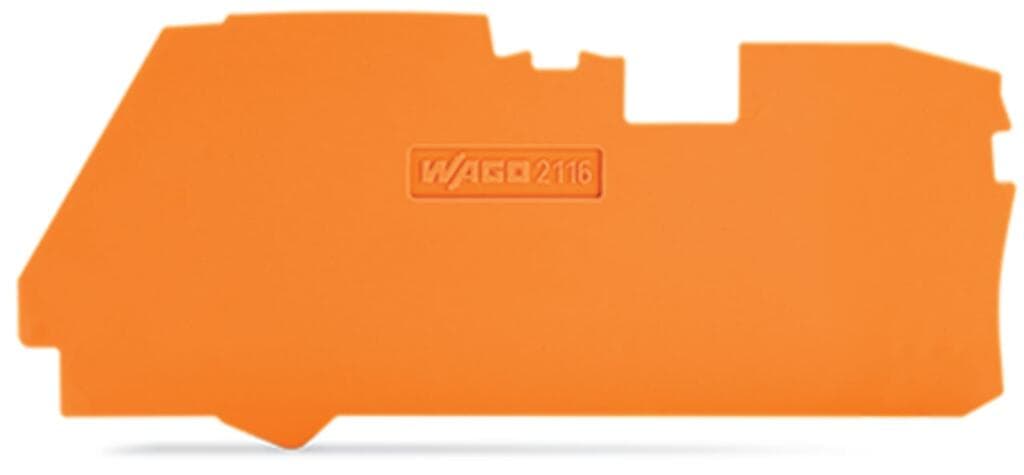

Product Model
2116-1292
Selling Points
- 1Orange Color: Enhances visibility in industrial settings.
- 21 mm Thickness: Provides premium performance without taking up much space.
- 3Polyamide Material: Durable and resistant to environmental factors.
- 4Suitable for Terminal Blocks: Ideal for use with WAGO TOPJOB S terminal blocks.
- 5Easy Installation: Designed to isolate exposed terminals and separate circuits on DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 91?mm?/ 3.583?inches |
Depth | 36.5?mm?/ 1.437?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 3.2g |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143747554 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
