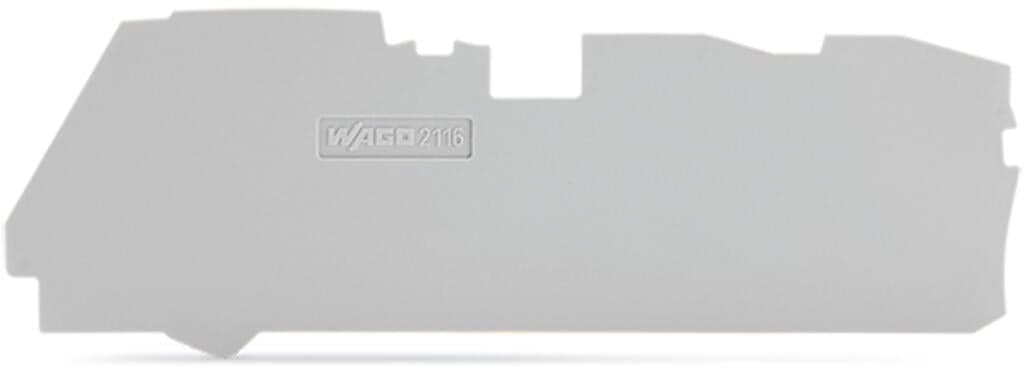

Product Model
2116-1391
Selling Points
- 1Compatible with 3-conductor terminal blocks.
- 2Made of durable, 1 mm thick gray material.
- 3Meets V0 flammability class per UL94.
- 4Ideal for electrical connections and terminal block systems.
- 5Available in packs of 25 for convenient ordering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 113.5?mm?/ 4.469?inches |
Depth | 36.5?mm?/ 1.437?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.123MJ |
Weight | 4.1g | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143747561 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
