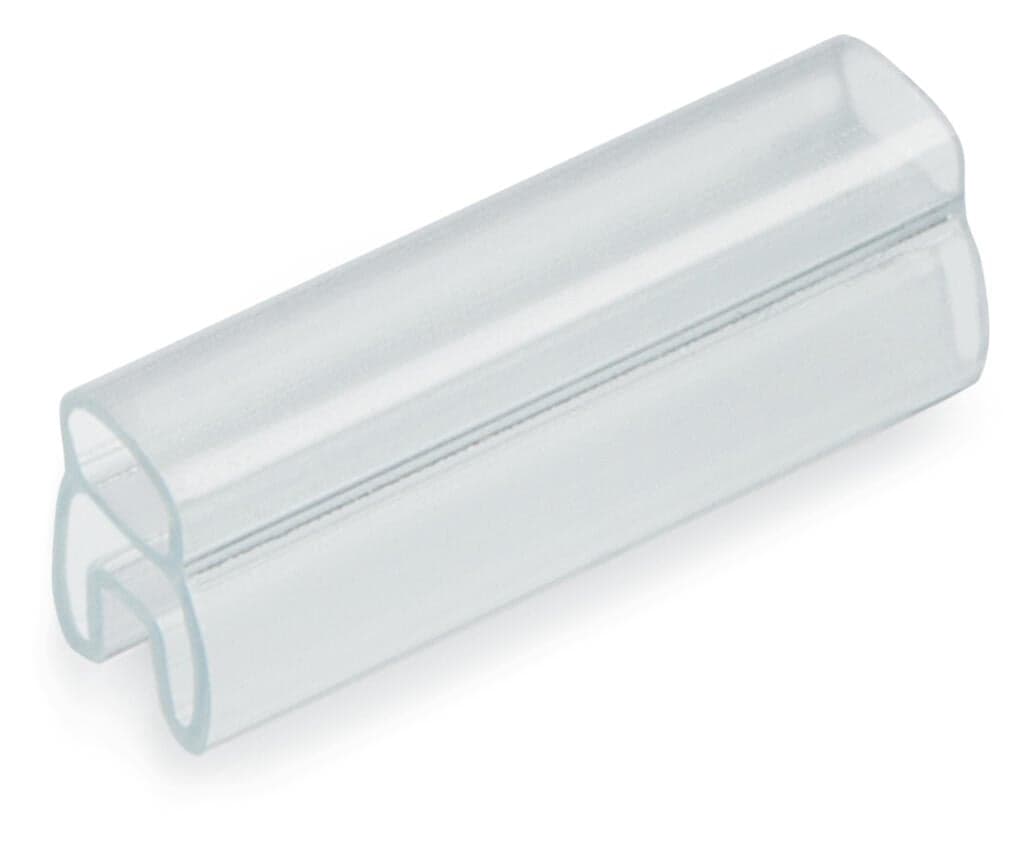

Product Model
211-823
Selling Points
- 1Halogen-Free Material: Ensures safety and compliance in various environments.
- 2Transparent Design: Easy to use and visualize the conductor.
- 323mm Length: Convenient size for precise marking.
- 4Suitable for 1.4-5mm Conductors: Compatible with a wide range of wire diameters.
- 5Snap-On Mounting: Easy installation and replacement of markers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for wire diameter 1.4 … 5 mm | Delivery form | Component |
Properties | for one 211-821 marker | Printing device | Smart Printer (Thermal Transfer Printer) |
Length | 23mm | Mounting type | Sliding on conductor |
Color | transparent | Material | Polyurethane |
Adhesive information | without adhesive | Halogen-free | Yes |
Weight | 0.5g | Ambient temperature (storage) | +5 … +40 °C |
Ambient temperature (operation) | -40 … +80 °C | Relative humidity | 40 … 80?% |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-04-01 |
eCl@ss 9.0 | 27-40-04-01 | ETIM 9.0 | EC001530 |
ETIM 8.0 | EC001530 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 500?pcs | Packaging type | box |
Country of origin | IT | GTIN | 4050821675013 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
