Product Model
215-111
Selling Points
- 1High current rating of 20A for reliable connections.
- 2CAGE CLAMP spring connections ensure secure and easy wiring.
- 3Compatible with 2.5mm² fine-stranded conductors.

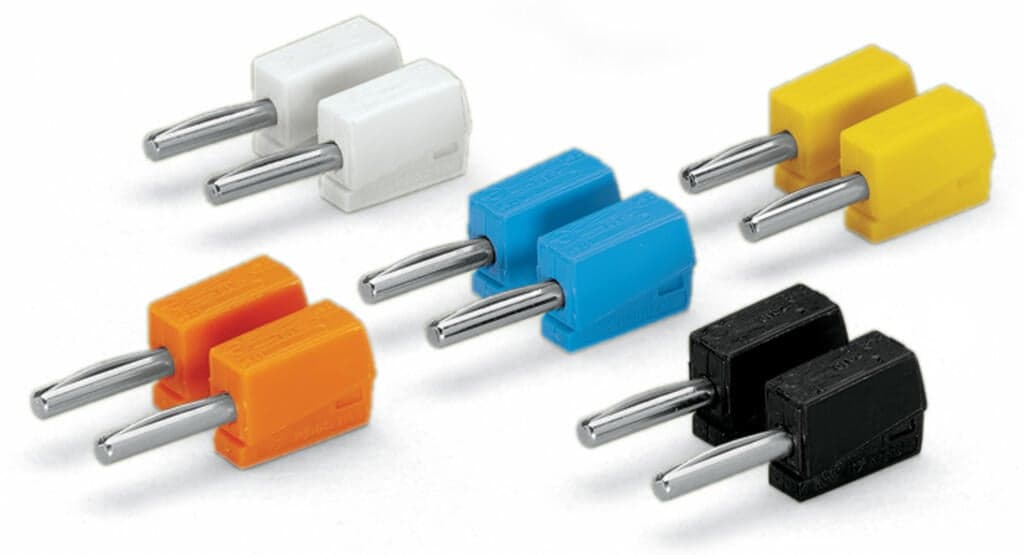

- 4Available in mixed colors (orange, white, black, blue, yellow).
- 5Compact design with dimensions of 8mm width and 40mm depth.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 1 | Rated current | 20A |
Test voltage | 42V | Connection technology | CAGE CLAMP? |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Clamping units | 1 |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Width | 8?mm?/ 0.315?inches | Height | 15?mm?/ 0.591?inches |
Depth | 40?mm?/ 1.575?inches | Color | orange |
Fire load | 0.045MJ | Weight | 3.9g |
eCl@ss 10.0 | 27-44-03-13 | eCl@ss 9.0 | 27-44-03-13 |
ETIM 9.0 | EC002255 | ETIM 8.0 | EC002255 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454293703 | Customs tariff number | 8536698000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 6cb7a1d1-c0d0-425a-b7aa-ddc1795f71db | SCIP notification number (Belgium) | 7ce487f1-b5ce-48e8-9507-8c83d948a677 |
SCIP notification number (Bulgaria) | 703cbdab-5670-458c-80be-baa4f7beb026 | SCIP notification number (Czech Republic) | cb330e6d-3275-4911-8b75-037bec9d3ddc |
SCIP notification number (Denmark) | dbedb628-b092-40ab-9235-3e38100561f1 | SCIP notification number (Finland) | a0dbfb59-a8ab-4115-96c6-40fa0edf2183 |
SCIP notification number (France) | 3e0dc567-9858-4526-9434-c369503d46fa | SCIP notification number (Germany) | 5726ed71-f470-47e1-9a1a-1f57ae70a4fb |
SCIP notification number (Hungary) | 9bc9bcab-1e68-4c94-98ed-349c3c71271d | SCIP notification number (Italy) | 63d1c8d1-329b-42d2-ae62-3df0ee3ba319 |
SCIP notification number (Netherlands) | 2f935e83-8fff-48e2-bb1e-a57e29fe1bff | SCIP notification number (Poland) | ab414ebf-3880-4f57-bcd8-b716cfa6097b |
SCIP notification number (Romania) | 0aa388ea-b910-4be5-a982-967bf4983926 | SCIP notification number (Sweden) | be25d885-a6de-4afe-84b3-7e737359d828 |
Specifications may be subject to change without notice
