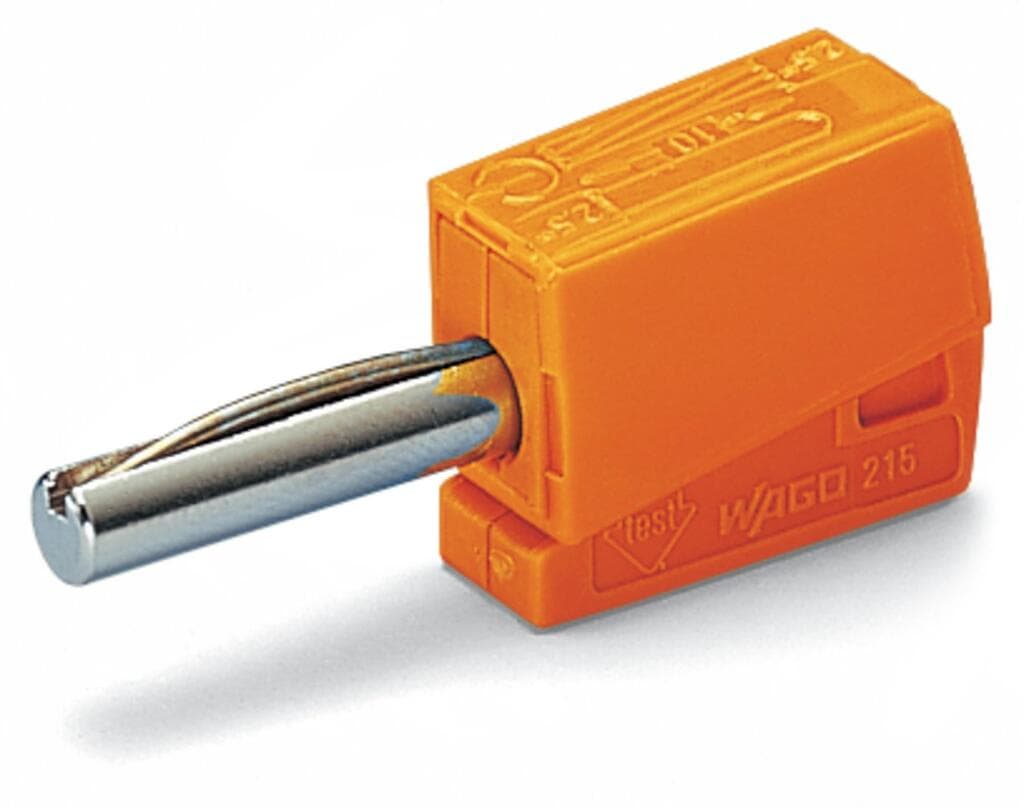

Product Model
215-211
Selling Points
- 1Secure and reliable connection with CAGE CLAMP spring connections.
- 2Rated for 20A and 42V, ensuring high performance in various applications.
- 3Compatible with 4mm sockets and 2.5mm² conductors for versatile use.
- 4Nickel-plated contact surface for durability and resistance to corrosion.
- 5Available in orange color, easy to identify in complex wiring setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 1 | Rated current | 20A |
Test voltage | 42V | Connection technology | CAGE CLAMP? |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Clamping units | 1 |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Width | 8?mm?/ 0.315?inches | Height | 15?mm?/ 0.591?inches |
Depth | 40?mm?/ 1.575?inches | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.04MJ |
Weight | 3.9g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-44-03-13 | eCl@ss 9.0 | 27-44-03-13 |
ETIM 9.0 | EC002255 | ETIM 8.0 | EC002255 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454293468 | Customs tariff number | 8536698000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 6d5d80c3-e339-4937-9b2d-9ff7ec326778 | SCIP notification number (Belgium) | ab88fe0f-f984-4a0a-bf8b-c3be04c9b1e0 |
SCIP notification number (Bulgaria) | d6ad3a6b-9a97-48d2-89f9-faea921285d2 | SCIP notification number (Czech Republic) | b135b66e-78b3-4b2b-9fcc-cd5e0da328e3 |
SCIP notification number (Denmark) | 8d43b5a7-f4ba-44e1-80e7-744008f3a41e | SCIP notification number (Finland) | 54c4b718-40bc-4c39-9149-38c1c20a1aaa |
SCIP notification number (France) | 8544936e-8897-4cfb-b411-ae3b2ca15073 | SCIP notification number (Germany) | 573ff099-24ba-4b7c-a82b-11fdebcb802a |
SCIP notification number (Hungary) | a95870a1-1371-4fff-8e96-636d312e0f3e | SCIP notification number (Italy) | 8ae4bb9e-eac4-4f83-be6e-d836ab6383e0 |
SCIP notification number (Netherlands) | ce822e07-6cd8-4855-bb14-1cb2ce9c93c4 | SCIP notification number (Poland) | d7ac91f7-4765-43b2-a53a-0b54ad2a77bf |
SCIP notification number (Romania) | 56e7a2ec-72b2-44ce-a8b5-670631d81a0b | SCIP notification number (Sweden) | 6039b23c-e148-44a8-819c-099a9292b8de |
Specifications may be subject to change without notice
