Product Model
215-212
Selling Points

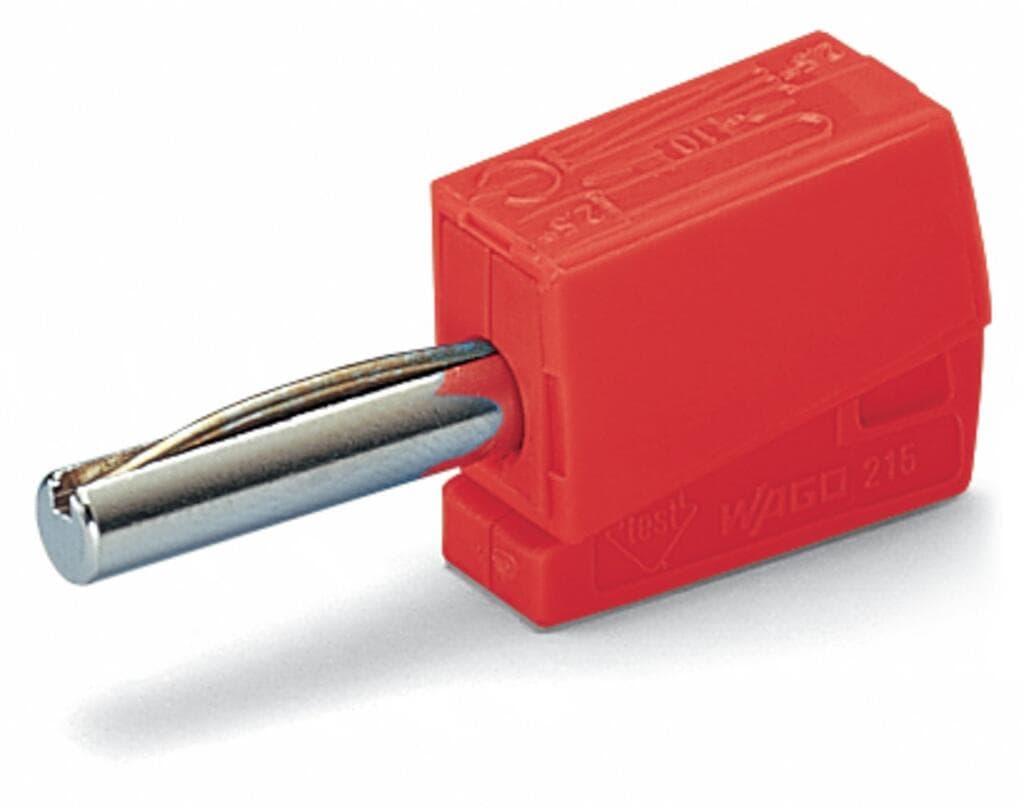

- 1Secure and Reliable Connections: The WAGO 215-212 banana plug ensures reliable connections with its CAGE CLAMP spring connections.
- 2High Current Rating: Supports a rated current of 20A, making it suitable for various applications.
- 3Versatile Wire Size: Accepts wire sizes from 28 to 14 AWG, accommodating different conductor diameters.
- 4Compliant with Regulations: Meets RoHS compliance standards, ensuring environmental safety.
- 5Easy Installation: Designed for cable mount, providing a straightforward installation process.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 1 | Rated current | 20A |
Test voltage | 42V | Connection technology | CAGE CLAMP? |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Clamping units | 1 |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Width | 8?mm?/ 0.315?inches | Height | 15?mm?/ 0.591?inches |
Depth | 40?mm?/ 1.575?inches | Color | red |
Fire load | 0.042MJ | Weight | 3.9g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-44-03-13 |
eCl@ss 9.0 | 27-44-03-13 | ETIM 9.0 | EC002255 |
ETIM 8.0 | EC002255 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454293482 |
Customs tariff number | 8536698000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 2539418b-58c0-4420-b110-a8f6ab77c7d3 |
SCIP notification number (Belgium) | 40b91dd3-96ec-45e4-98a3-341b4f102193 | SCIP notification number (Bulgaria) | 2c7e6bcf-0e3a-4874-bd96-ca190e7a4a9e |
SCIP notification number (Czech Republic) | 6ae9ae04-5491-4be6-9408-287c5cac46ef | SCIP notification number (Denmark) | ee055b55-ddba-4b30-b59e-050f53013fbf |
SCIP notification number (Finland) | b9f0e73b-b87a-4d38-9f60-07226fdca07c | SCIP notification number (France) | 777cf7f1-adc1-488b-8b47-2ec5717e1dbc |
SCIP notification number (Germany) | f86c9c1d-6b5b-4fcb-967f-87dfd241ff49 | SCIP notification number (Hungary) | e64905c2-f29e-42da-ae87-c0d1394acf4c |
SCIP notification number (Italy) | 3deffdb3-7962-4859-bb7b-d7bfa4bf193c | SCIP notification number (Netherlands) | f5917138-401f-4204-8cee-f8469370655a |
SCIP notification number (Poland) | 8d29f775-0f15-49b0-9c59-e38ab34f044f | SCIP notification number (Romania) | 1779a648-224f-4eb8-9cbf-7df1a926218b |
SCIP notification number (Sweden) | 62c7a902-eab2-4325-8850-9887794132d4 |
Specifications may be subject to change without notice
