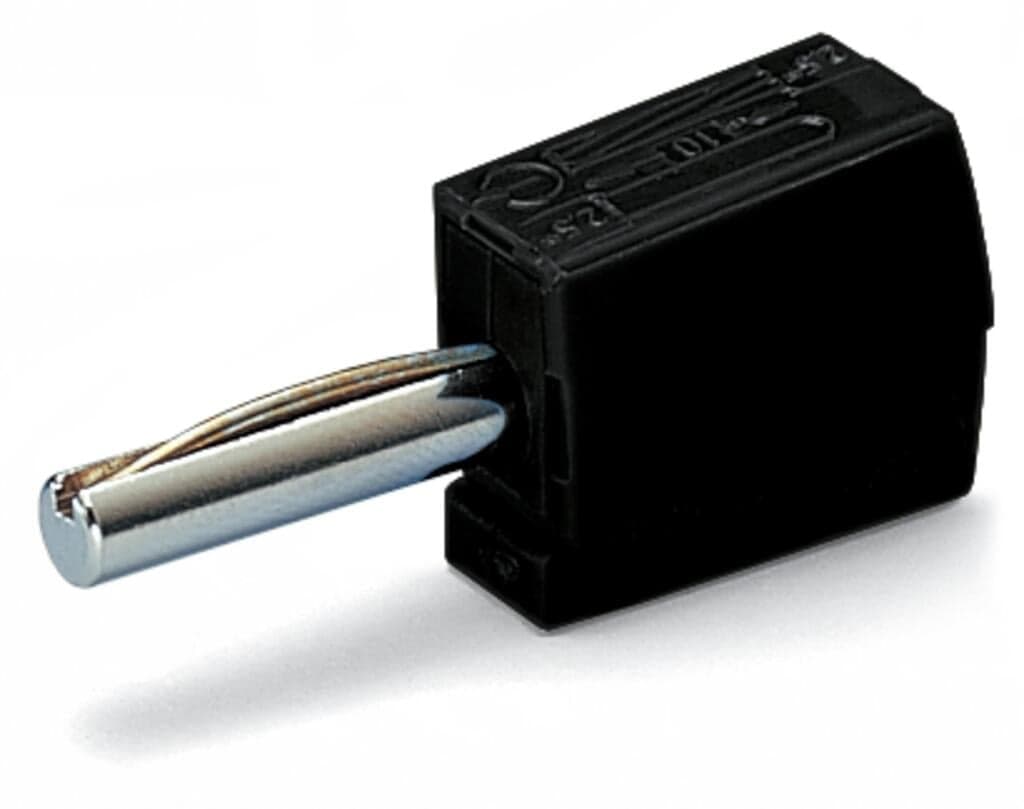

Product Model
215-311
Selling Points
- 1Supports up to 20A for reliable connections.
- 2Secure and easy-to-use spring connections.
- 3Designed for 4mm diameter sockets.
- 4Black color for easy identification in test setups.
- 5Meets RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 1 | Rated current | 20A |
Test voltage | 42V | Connection technology | CAGE CLAMP? |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Clamping units | 1 |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Width | 8?mm?/ 0.315?inches | Height | 15?mm?/ 0.591?inches |
Depth | 40?mm?/ 1.575?inches | Color | black |
Fire load | 0.041MJ | Weight | 3.9g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-44-03-13 |
eCl@ss 9.0 | 27-44-03-13 | ETIM 9.0 | EC002255 |
ETIM 8.0 | EC002255 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454293499 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
