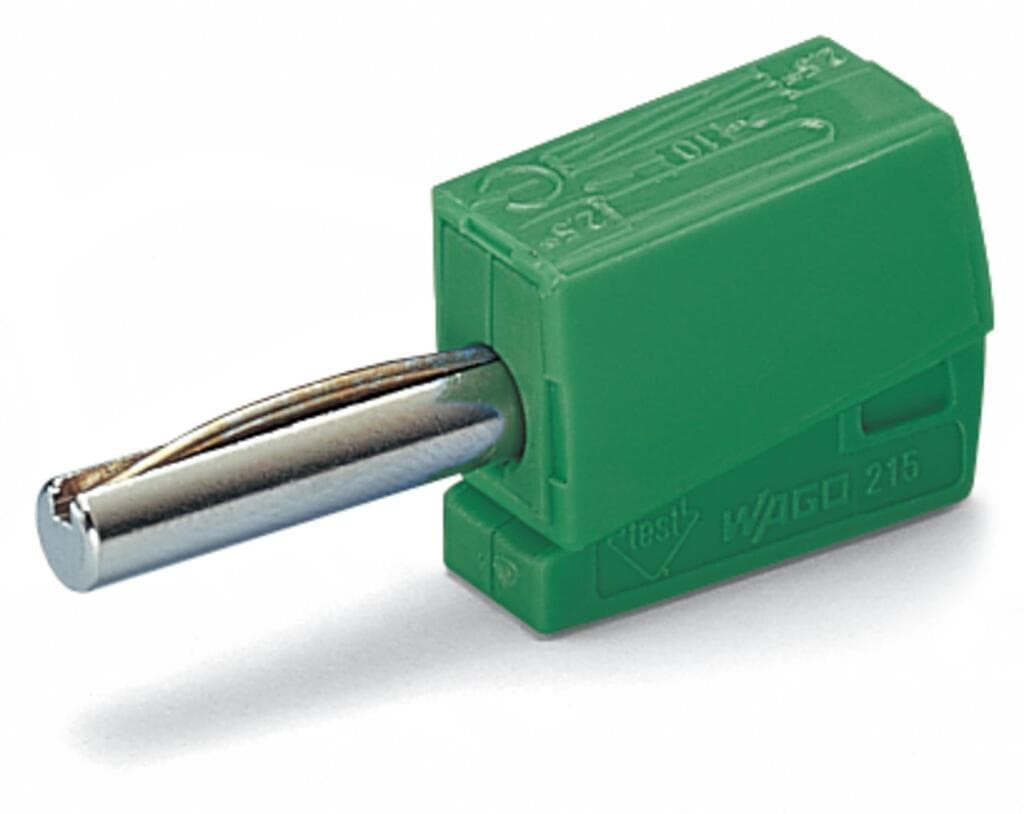

Product Model
215-411
Selling Points
- 1Rated for 20A current and 42V test voltage.
- 2Features CAGE CLAMP technology for secure connections.
- 3Available in 9 different colors for easy identification.
- 4Compatible with 4mm Ø socket and solid conductors (0.08 … 2.5 mm² / 28 … 14 AWG).
- 5Compact dimensions: 15mm x 8mm x 40mm, weighing 3.9g.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 1 | Rated current | 20A |
Test voltage | 42V | Connection technology | CAGE CLAMP? |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Clamping units | 1 |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Width | 8?mm?/ 0.315?inches | Height | 15?mm?/ 0.591?inches |
Depth | 40?mm?/ 1.575?inches | Color | green |
Fire load | 0.04MJ | Weight | 3.9g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-44-03-13 |
eCl@ss 9.0 | 27-44-03-13 | ETIM 9.0 | EC002255 |
ETIM 8.0 | EC002255 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454293505 |
Customs tariff number | 8536698000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | fad4b759-fd8c-44c0-a40c-b8aa0ccbe4bf |
SCIP notification number (Belgium) | 9c65cdbc-51a7-4ed6-8be1-b312c2933b8f | SCIP notification number (Bulgaria) | a7b3249d-e131-483d-b5fb-9f57b556a9e6 |
SCIP notification number (Czech Republic) | e928e70b-9d5a-4b1e-b660-235d73eaa846 | SCIP notification number (Denmark) | 86c14974-5f08-4cab-af47-cb7fa7bc96de |
SCIP notification number (Finland) | c7929fdf-f997-4ee1-8dd6-34d17f845baf | SCIP notification number (France) | a671efa4-196e-42c3-a8d2-13515cae40dd |
SCIP notification number (Germany) | f22d61d1-462f-4eae-bae6-68ce4cc3b654 | SCIP notification number (Hungary) | 3ce963ef-b458-4a57-a3fd-a3c2516d32a7 |
SCIP notification number (Italy) | e9407dcc-a252-4282-873b-3a2d1b31a2e5 | SCIP notification number (Netherlands) | b007cdbd-c168-4c36-96dc-b332a47431b0 |
SCIP notification number (Poland) | bc2a05f4-8aac-4cee-be5d-058153665070 | SCIP notification number (Romania) | 7ef0b180-1132-4895-8d93-d69a01beb337 |
SCIP notification number (Sweden) | 7c6f76cf-fda7-4e81-a2ff-7d22c2312575 |
Specifications may be subject to change without notice
