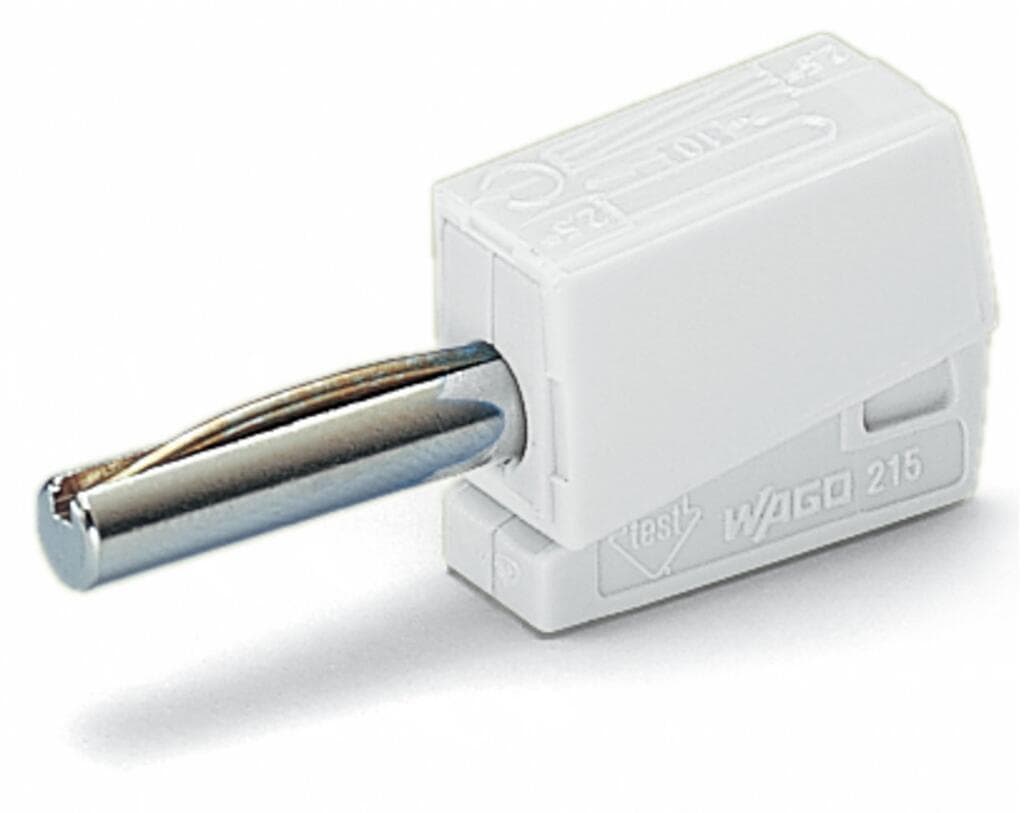

Product Model
215-611
Selling Points
- 1Secure jumper retention spring ensures stable connections.
- 2Rated for 20A and 42V, suitable for various testing applications.
- 3Available in multiple colors: Ash, Black, Blue, Green, Green yellow, Orange, Red, White, Yellow.
- 4Compatible with φ4mm sockets for easy installation.
- 5Non-insulated design for straightforward connections in testing setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 1 | Rated current | 20A |
Test voltage | 42V | Connection technology | CAGE CLAMP? |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Clamping units | 1 |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Width | 8?mm?/ 0.315?inches | Height | 15?mm?/ 0.591?inches |
Depth | 40?mm?/ 1.575?inches | Color | white |
Fire load | 0.066MJ | Weight | 3.9g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-44-03-13 |
eCl@ss 9.0 | 27-44-03-13 | ETIM 9.0 | EC002255 |
ETIM 8.0 | EC002255 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454293536 |
Customs tariff number | 8536698000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 675cc8ff-f6ae-4c46-9a60-3ea0a0f460d9 |
SCIP notification number (Belgium) | 56c5dcf4-508a-4868-a586-544637bcf0ee | SCIP notification number (Bulgaria) | 5a5afa3b-377f-4e6c-bf09-65741106b324 |
SCIP notification number (Czech Republic) | 609d05d3-fd7e-4da4-8ab2-71f00a086401 | SCIP notification number (Denmark) | f187967d-33a9-4211-9980-9f255c623bb9 |
SCIP notification number (Finland) | eb85138e-3889-4a07-a87e-25abeb8fffd9 | SCIP notification number (France) | 043f5732-eda2-4ef9-aabc-645b5d884d52 |
SCIP notification number (Germany) | 6022578d-1e7e-4789-b421-b986fdbe7c97 | SCIP notification number (Hungary) | 35eb67a0-91c9-48c7-a6ce-e7ffe291d340 |
SCIP notification number (Italy) | 0b24a49e-fc74-444e-834f-00bb3e3f74b4 | SCIP notification number (Netherlands) | 842d5267-e2a6-4227-99ae-d9157569497c |
SCIP notification number (Poland) | fa5b5feb-ba09-4dd5-8aa4-b9ea8e3ebb86 | SCIP notification number (Romania) | aac5de8c-cb45-4821-91fb-0f85a94ab209 |
SCIP notification number (Sweden) | 39908af4-7f7d-469a-a278-d41d1b6fca00 |
Specifications may be subject to change without notice
