Product Model

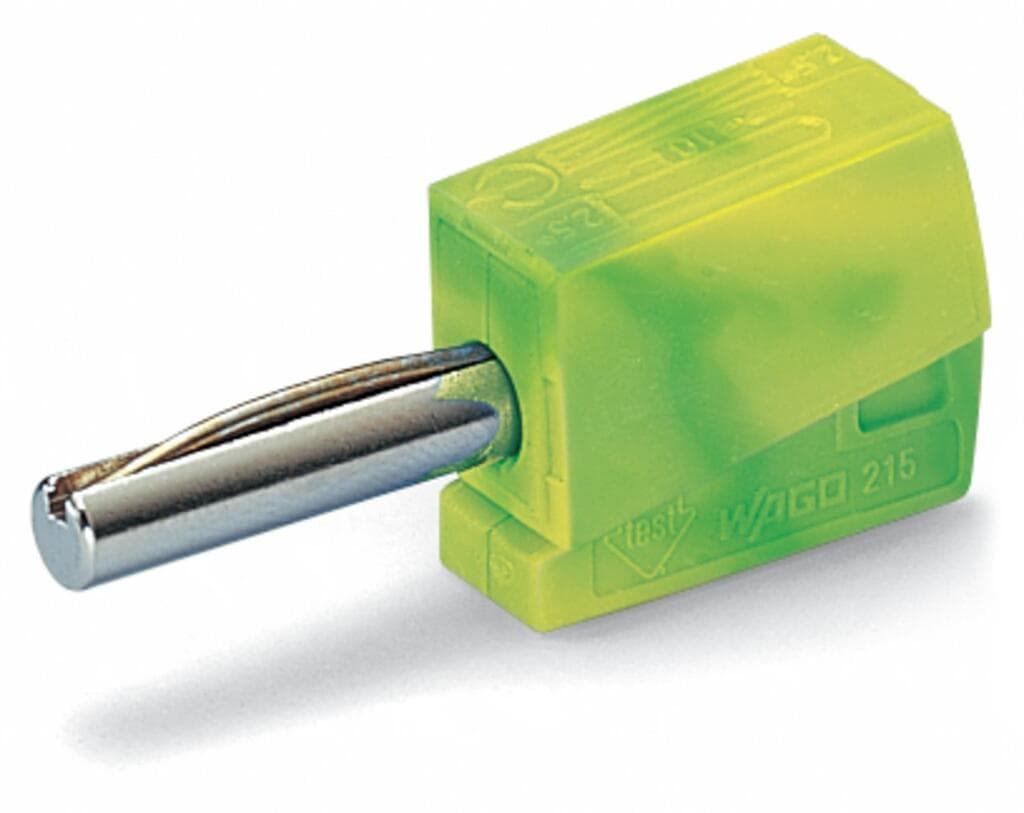

215-911
Selling Points
- 1Secure and Reliable Contact: Features CAGE CLAMP spring connections for reliable contact.
- 2Versatile Color Options: Available in multiple colors including Ash, Black, Blue, Green, Green Yellow, Orange, Red, White, and Yellow.
- 3High Current Rating: Rated for 20A current with a maximum outer diameter of φ3.8mm.
- 4Easy Installation: Designed for φ4mm sockets with an 8mm width for plug-in mounting.
- 5Durable and Long-Lasting: Constructed to withstand frequent use in testing applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 1 | Rated current | 20A |
Test voltage | 42V | Connection technology | CAGE CLAMP? |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Clamping units | 1 |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Width | 8?mm?/ 0.315?inches | Height | 15?mm?/ 0.591?inches |
Depth | 40?mm?/ 1.575?inches | Color | green-yellow |
Fire load | 0.04MJ | Weight | 3.9g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-44-03-13 |
eCl@ss 9.0 | 27-44-03-13 | ETIM 9.0 | EC002255 |
ETIM 8.0 | EC002255 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454293567 |
Customs tariff number | 8536698000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 11a03ff5-a36f-43da-b613-56f9cc3f0f73 |
SCIP notification number (Belgium) | b76949c6-e6eb-48b3-8a4f-d3e40bb5bbf3 | SCIP notification number (Bulgaria) | ba74eb32-6f43-4bff-bbdd-110f2dd35b0c |
SCIP notification number (Czech Republic) | b7e4d258-b776-4d4c-873e-0b1622a09379 | SCIP notification number (Denmark) | 374f27a2-7a2f-489b-b3d3-db34ca1eeee9 |
SCIP notification number (Finland) | fba41022-f292-4a5d-929b-4be4bf903756 | SCIP notification number (France) | a2e81971-2a70-4c24-8d8c-d887d2a26d87 |
SCIP notification number (Germany) | 534e3015-7658-4225-9766-10ffea125f7f | SCIP notification number (Hungary) | 49d347b9-f772-482a-9f27-3f50e55ac4b7 |
SCIP notification number (Italy) | cf5684cb-e759-4fd2-a561-851d016e9e8f | SCIP notification number (Netherlands) | e676c47b-5ec8-4fa4-b85c-ba063cf9c9c3 |
SCIP notification number (Poland) | 3fed0584-489d-4db5-ad3b-455b0e19a745 | SCIP notification number (Romania) | 789bcf42-8b74-4a01-95ad-e85601b1f323 |
SCIP notification number (Sweden) | a7d62418-380b-4e56-a926-5857023c5344 |
Specifications may be subject to change without notice
