Product Model

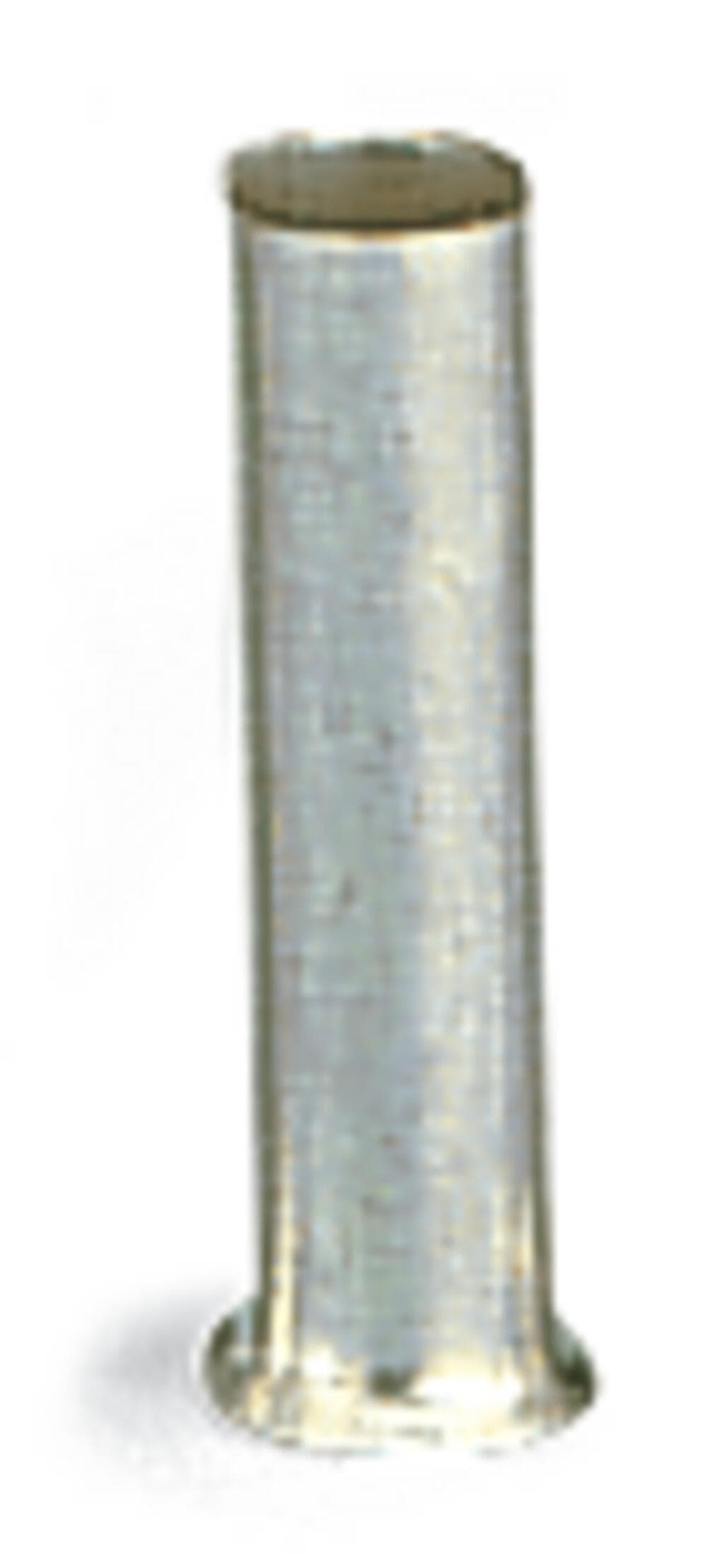

216-101
Selling Points
- 1High-Quality Material: Made from durable copper contact material.
- 2Efficient Crimping: Easy to crimp, ensuring secure connections.
- 3Compact Design: Non-insulated, 1 mm ID x 2.1 mm OD, and 8 mm length.
- 4Versatile Use: Suitable for conductors 20 to 22 AWG.
- 5RoHS Compliant: Meets environmental standards for safe use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 20AWG | Sleeve for | 0.5mm2 |
Strip length | 8?mm?/ 0.31?inches | Length | 8mm |
Diameter | 2.1mm | Diameter crimp sleeve inside | 1mm |
Color | silver-colored | Weight | 0g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-02-01 |
eCl@ss 9.0 | 27-40-02-01 | ETIM 9.0 | EC000005 |
ETIM 8.0 | EC000005 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5000?(1000)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332277617 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
