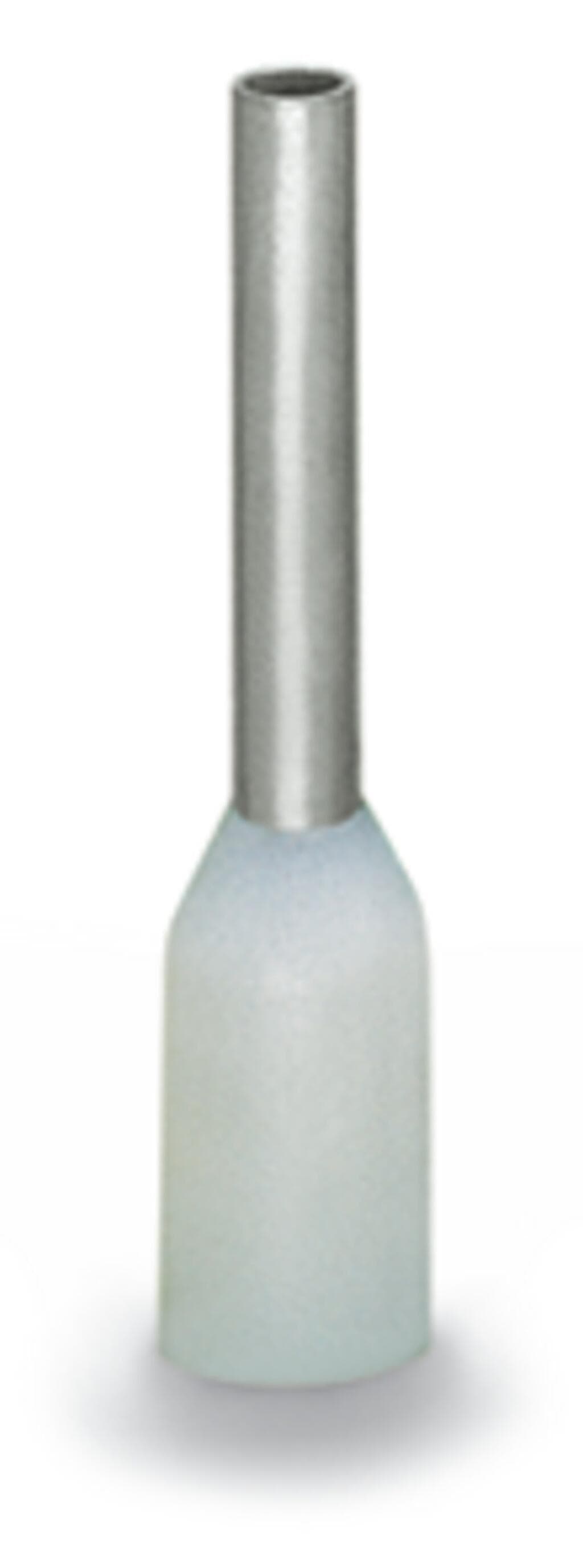

Product Model
216-221
Selling Points
- 112 A for reliable electrical connections.
- 22.5 mm ID x 3 mm OD barrel size for efficient use in tight spaces.
- 3Polypropylene insulation ensures safety and prevents moisture entry.
- 4Screwless end stop and crimped connection simplify the installation process.
- 5Electro-tin plated electrolytic copper for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 20AWG | Sleeve for | 0.5mm2 |
Strip length | 7?mm?/ 0.28?inches | Length | 12mm |
Crimp length (length of sleeve) | 6mm | Diameter | 3.1mm |
Inner Diameter plastic collar | 2.6mm | Diameter crimp sleeve inside | 1mm |
Color | white | Fire load | 0.001MJ |
Weight | 0.1g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332277426 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
