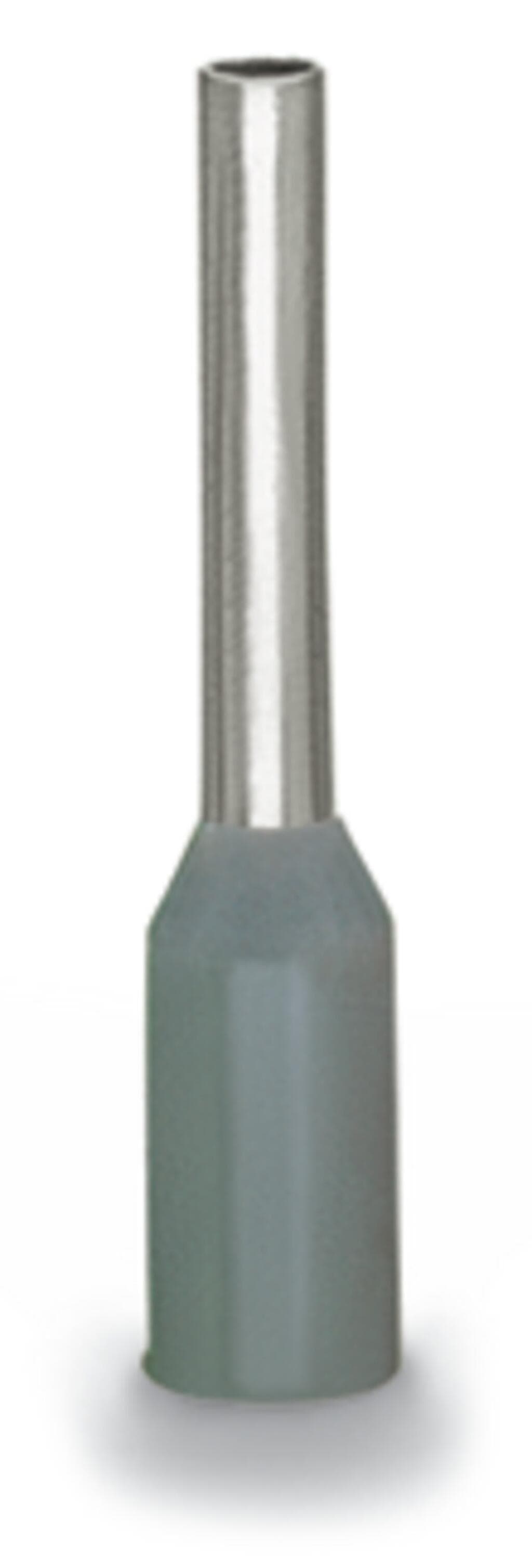

Product Model
216-222
Selling Points
- 1Securely connects conductors with electro-tin plated insulation.
- 2Compatible with 0.5 mm² / AWG 22 conductors.
- 3Insulated for added safety and durability.
- 4Easy to install with a simple push-in mechanism.
- 5Durable electro-tin plating ensures long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 18AWG | Sleeve for | 0.75mm2 |
Strip length | 8?mm?/ 0.31?inches | Length | 12mm |
Crimp length (length of sleeve) | 6mm | Diameter | 3.3mm |
Inner Diameter plastic collar | 2.8mm | Diameter crimp sleeve inside | 1.2mm |
Color | gray | Fire load | 0.001MJ |
Weight | 0.1g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332277440 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
