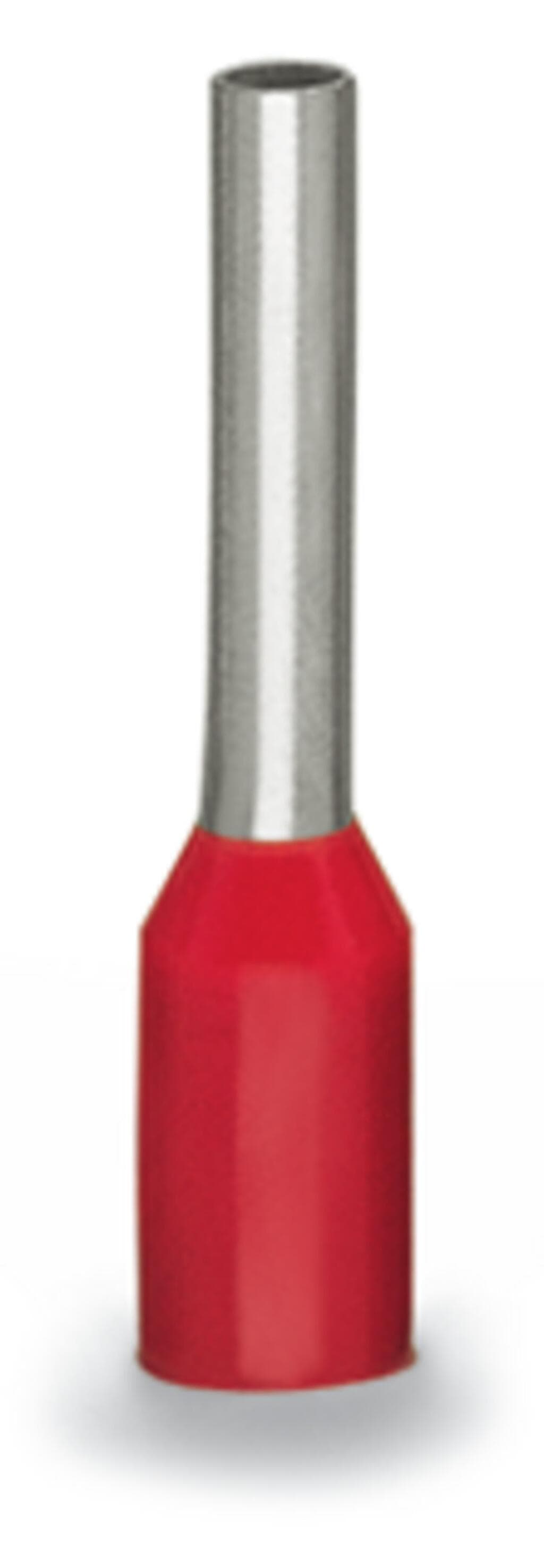

Product Model
216-243
Selling Points
- 1Insulated for added safety and reliability.
- 2Electro-tin plated electrolytic copper for excellent electrical conductivity.
- 3Gastight crimped for secure and leak-proof connections.
- 4Suitable for 1mm²/18AWG wire size, ensuring precise fitment.
- 5Compliant with DIN 46228, Part 4/09.90, ensuring high standards of quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 18AWG | Sleeve for | 1mm2 |
Strip length | 12?mm?/ 0.47?inches | Length | 16mm |
Crimp length (length of sleeve) | 10mm | Diameter | 3.5mm |
Inner Diameter plastic collar | 3mm | Diameter crimp sleeve inside | 1.4mm |
Suitable | 2001 – 2002 Series | Color | red |
Weight | 0.1g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918016339 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
