Product Model
216-264
Selling Points

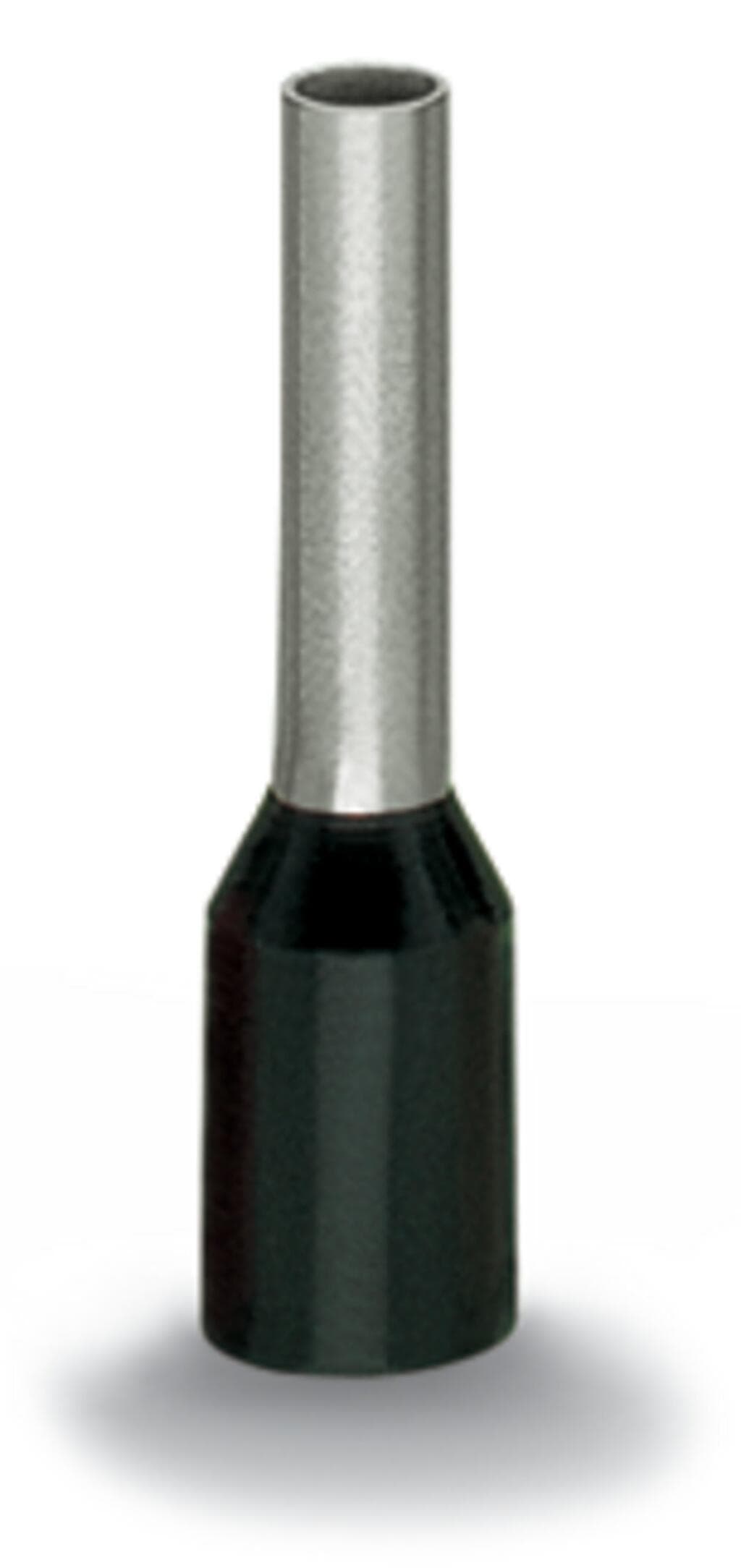

- 1Insulated ferrule terminal for 1.5mm²/16AWG wire.
- 2Electro-tin plated electrolytic copper contact.
- 3Gastight crimped for secure connections.
- 4Black insulator color for easy identification.
- 5Compliant with DIN 46228, Part 4/09.90 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 16AWG | Sleeve for | 1.5mm2 |
Strip length | 14?mm?/ 0.55?inches | Length | 18mm |
Crimp length (length of sleeve) | 12mm | Diameter | 4mm |
Inner Diameter plastic collar | 3.5mm | Diameter crimp sleeve inside | 1.7mm |
Suitable | 2002 to 2006 Series | Color | black |
Fire load | 0.001MJ | Weight | 0.1g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-02-01 |
eCl@ss 9.0 | 27-40-02-01 | ETIM 9.0 | EC000005 |
ETIM 8.0 | EC000005 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1000?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918604291 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
