Product Model
216-286
Selling Points

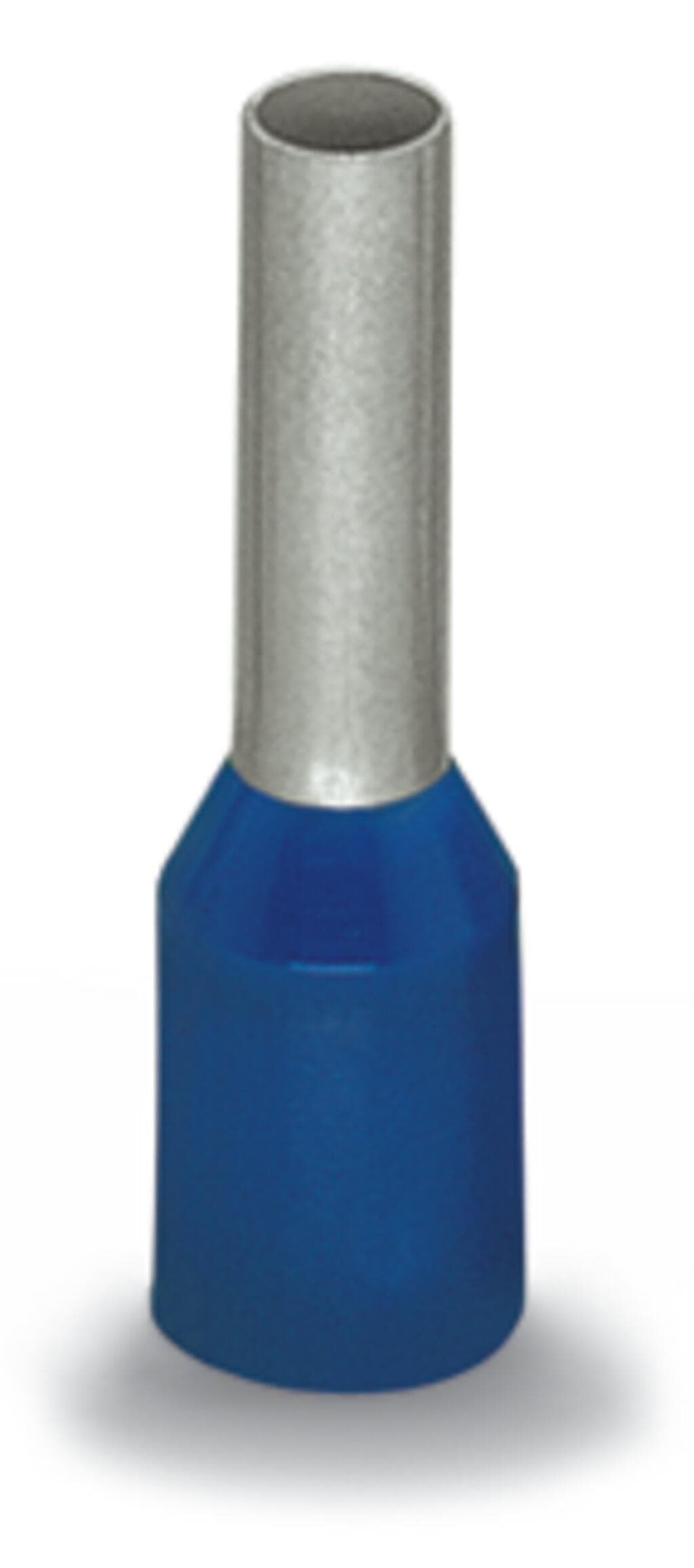

- 1The WAGO 216-286 ferrule connector is insulated with electro-tin plating for enhanced durability and electrical safety.
- 2Designed for gastight crimping, ensuring secure connections that meet DIN 46228 standards.
- 3Suitable for use with AWG 14 wires, making it ideal for a wide range of electrical and electronic applications.
- 4Easy identification with its blue color, simplifying cable management and organization.
- 5Made from electrolytic copper, providing excellent conductivity and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 14AWG | Sleeve for | 2.5mm2 |
Strip length | 20?mm?/ 0.79?inches | Length | 25mm |
Crimp length (length of sleeve) | 18mm | Diameter | 4.7mm |
Inner Diameter plastic collar | 4.2mm | Diameter crimp sleeve inside | 2.2mm |
Suitable | 2010 to 2016 Series | Color | blue |
Weight | 0g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 500?pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4055143654753 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
