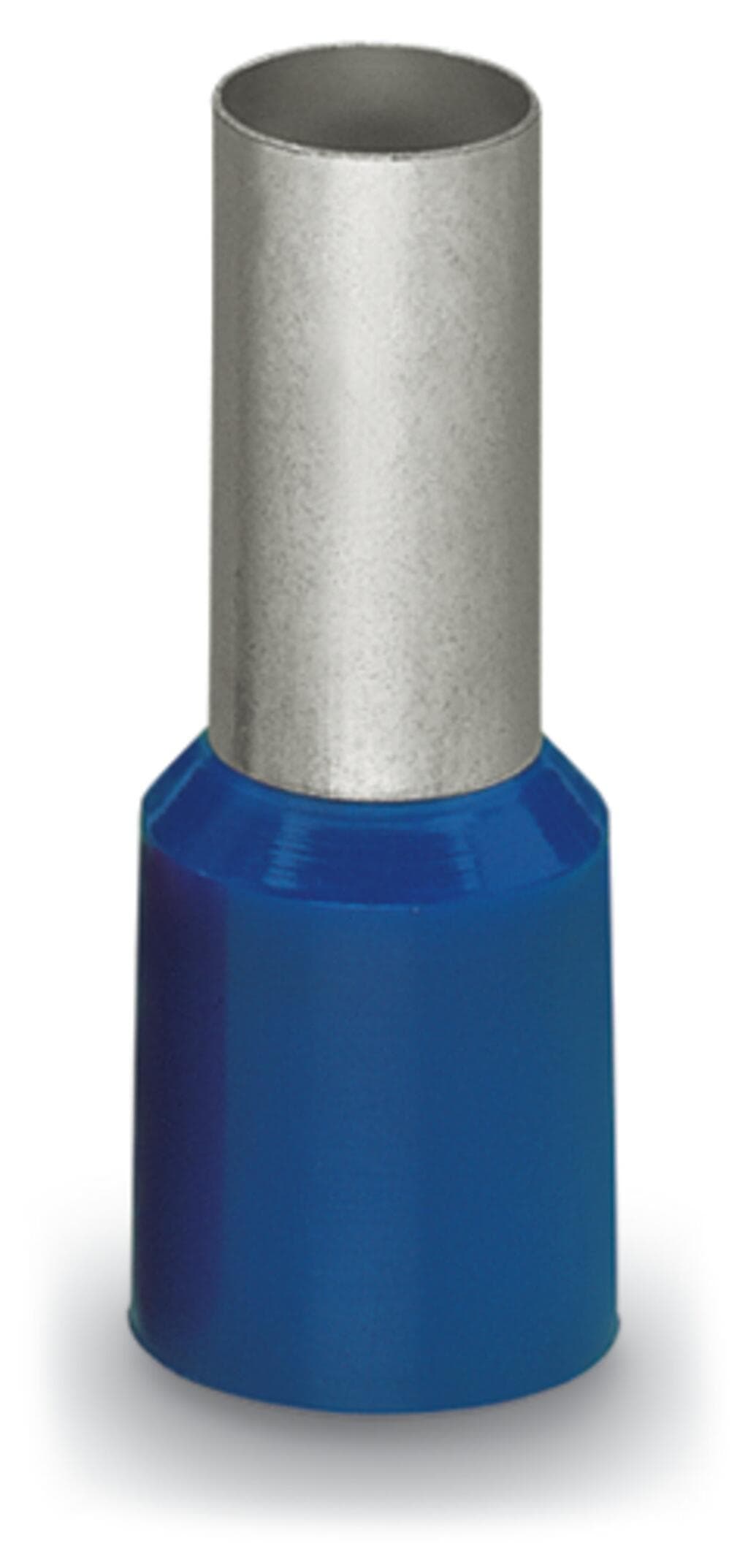

Product Model
216-289
Selling Points
- 1Electro-tin plating for corrosion resistance.
- 2Gastight crimping ensures secure connections.
- 3DIN 46228 compliant for high standards.
- 4Insulated for added safety and protection.
- 5Ideal for 10mm² / AWG 8 wire applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 8AWG | Sleeve for | 10mm2 |
Strip length | 20?mm?/ 0.79?inches | Length | 28mm |
Crimp length (length of sleeve) | 18mm | Diameter | 8.4mm |
Inner Diameter plastic collar | 7.6mm | Diameter crimp sleeve inside | 4.5mm |
Suitable | 2010 to 2016 Series | Color | red |
Weight | 0.7g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | Bag | Country of origin | DE |
GTIN | 4055143654777 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
