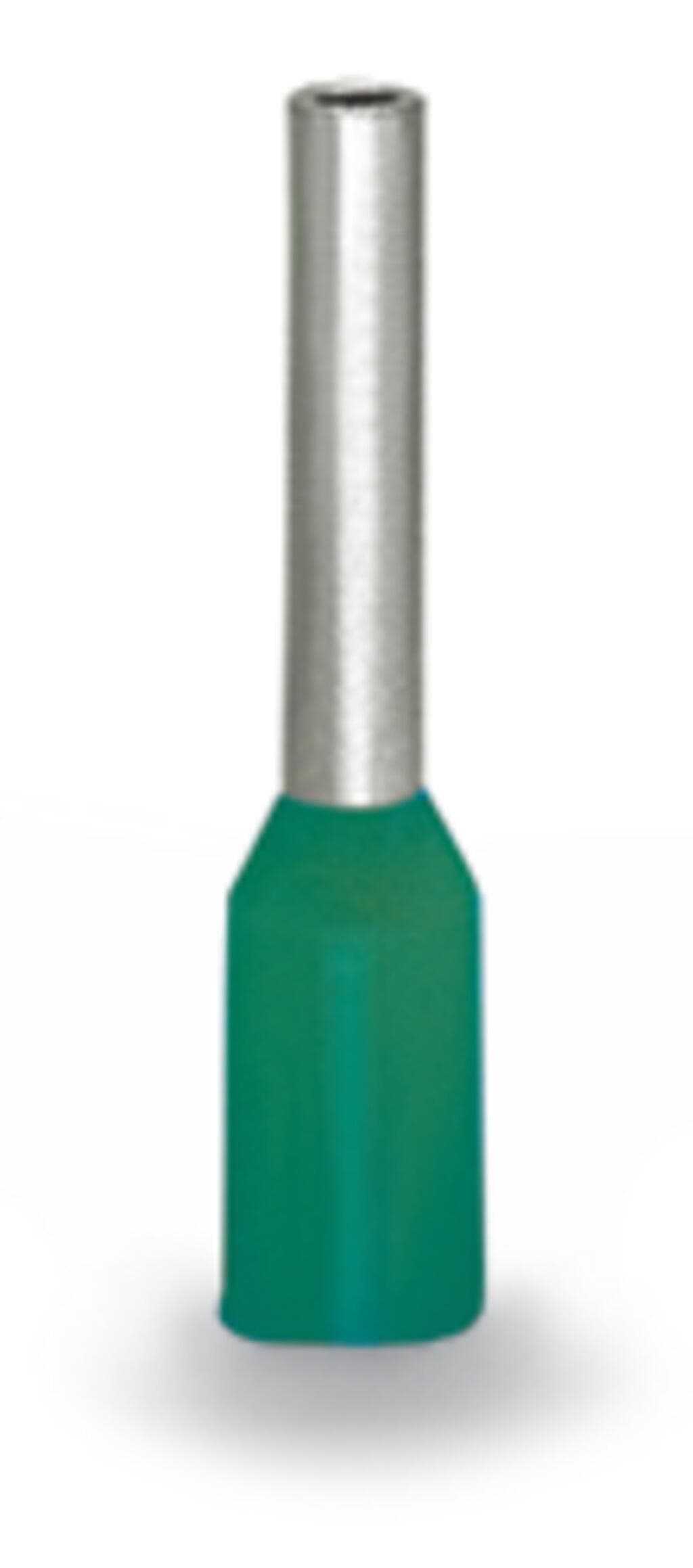

Product Model
216-322
Selling Points
- 1Insulated Ferrule: Ensures secure and reliable connections.
- 224 AWG Conductor: Suitable for various cable sizes.
- 3Electro-Tin Plated: Provides excellent electrical conductivity.
- 4Crimp Mounting: Easy to install with crimping tools.
- 5Green Color: Easy to identify in cable management systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Sleeve cross-section (AWG) | 22AWG | Sleeve for | 0.34mm2 |
Strip length | 7?mm?/ 0.28?inches | Length | 10mm |
Crimp length (length of sleeve) | 6mm | Diameter | 2.5mm |
Inner Diameter plastic collar | 2mm | Diameter crimp sleeve inside | 0.5mm |
Color | light turquoise | Fire load | 0.001MJ |
Weight | 0.1g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332277402 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
