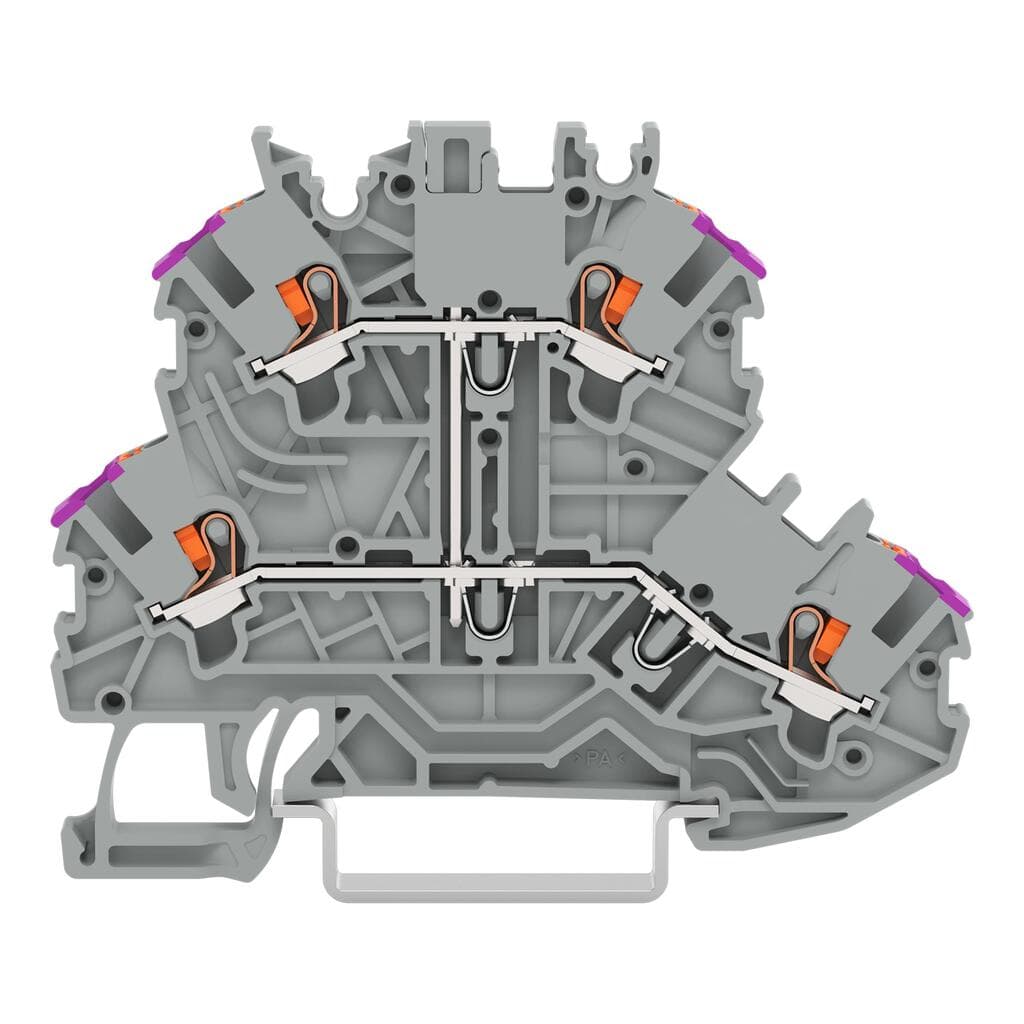

Product Model
2200-2208
Selling Points
- 1Secure and efficient conductor connection.
- 2Simplifies wiring with integrated commoning points.
- 3Easy identification of conductor entry points.
- 4Versatile mounting options for 35 x 15 and 35 x 7.5 rails.
- 5Suitable for explosive environments with high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Number of jumper slots | 4 |
Width | 3.5 mm / 0.138 inches | Height | 69.7 mm / 2.744 inches |
Depth from upper-edge of DIN-rail | 51.7 mm / 2.035 inches | Potential Marking | L |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.175MJ |
Weight | 7.9g | Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50 pcs | Packaging type | Box |
Country of origin | IN | GTIN | 4066966478662 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb) | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 13.5A |
Current at conductor cross-section (max.) mm2 | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 320V | Rated current (Ex e II) | 13A |
Rated current (Ex e II) with jumper | 12A | Power loss, per pole (potential) | 0.434W |
Rated current I<sub>N</sub> for specified power loss | 13.5A | Resistance value for specified, current-dependent power loss | 0.002Ω |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 2 |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5 mm2 / 24 … 16 AWG |
Solid conductor; push-in termination | 0.5 … 1.5 mm2 / 20 … 16 AWG | Fine-stranded conductor | 0.14 … 1.5 mm2 / 24 … 16 AWG |
Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75 mm2 / 24 … 18 AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75 mm2 / 20 … 18 AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11 mm / 0.35 … 0.43 inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 2 |
Specifications may be subject to change without notice
