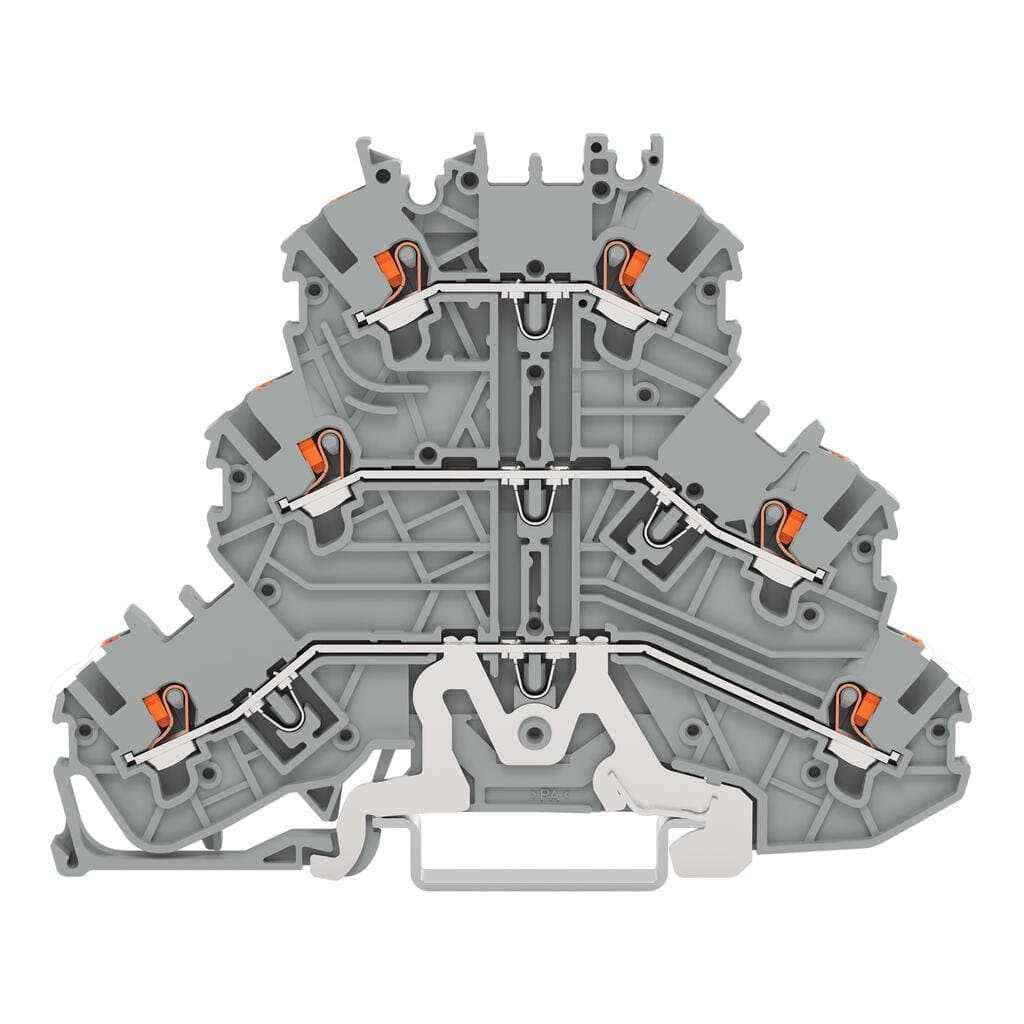

Product Model
2200-3228
Selling Points
- 1Triple-deck design for multiple connections: Accommodates six clamping points for three potentials.
- 2Push-button operation: Easy actuation for secure connections.
- 31 mm² shielding: Provides robust electrical insulation and protection.
- 4DIN-rail compatibility: Mounts seamlessly on DIN-rail 35 x 15 and 35 x 7.5.
- 5High-quality construction: Made from durable polyamide (PA66) for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | Number of levels | 3 |
Number of jumper slots | 6 | Width | 3.5?mm?/ 0.138?inches |
Height | 93.6?mm?/ 3.685?inches | Depth from upper-edge of DIN-rail | 69.5?mm?/ 2.736?inches |
Potential Marking | Shield/L/L | Mounting type | DIN-rail 35 x 15 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.273MJ |
Actuator color | orange | Weight | 15.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 40?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966394245 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 13.5A | Current at conductor cross-section (max.) mm2 | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Power loss, per pole (potential) | 2.298W | Rated current I<sub>N</sub> for specified power loss | 24A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Total number of connection points | 3 | Actuation type | Push-button |
Actuation direction 1 | Operation parallel to conductor entry | Connectable conductor materials | Copper |
Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Solid conductor; push-in termination | 0.5?mm2?/ 20?AWG | Stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2?/ 20 … 18?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5?mm2?/ 20?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Number of connection points 2 | 3 |
Specifications may be subject to change without notice
