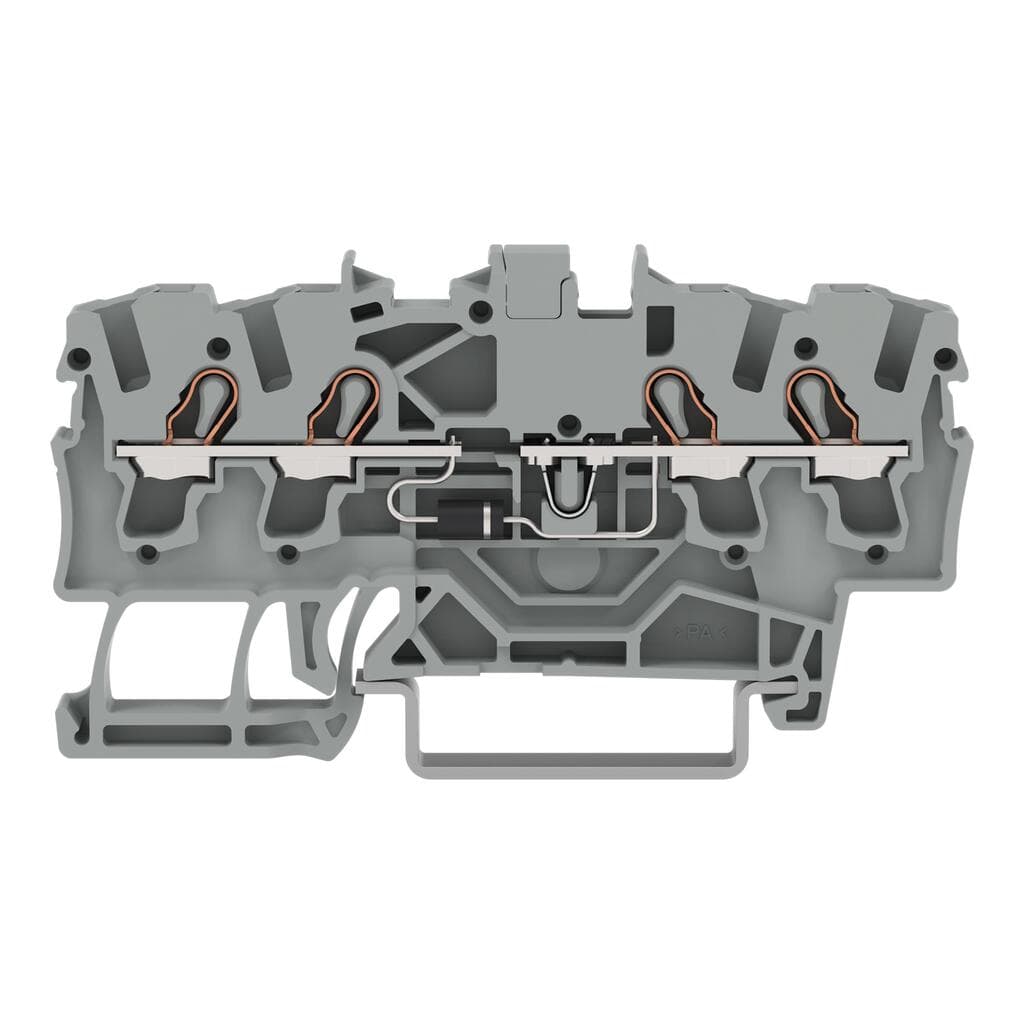

Product Model
2202-1411/1000-410
Selling Points
- 1Constructed with high-quality materials for long-lasting performance.
- 2Push-in CAGE CLAMP technology ensures quick and secure connections.
- 3Suitable for DIN-rail 35 x 15 and 35 x 7.5, making it versatile for various applications.
- 4Equipped with a diode (1N4007) for added safety and protection.
- 5RoHS compliant with specific exemptions, ensuring environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 5.2 mm / 0.205 inches | Height | 69.9 mm / 2.752 inches |
Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.204MJ | Weight | 9.5g |
Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966324280 | Customs tariff number | 85369010000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 83743445-ffee-49f9-ad96-06f0a874498e | SCIP notification number (Belgium) | 7e7b3d77-f07f-4901-a810-ab2d105063bd |
SCIP notification number (Czech Republic) | fe337515-7eac-458a-8847-0ce23d3a7707 | SCIP notification number (Denmark) | 4f5c94d5-206e-4cf6-abf6-b0caee2c3ee8 |
SCIP notification number (Finland) | 80a5bf4f-9314-4122-82b3-d60f6d6d8960 | SCIP notification number (Germany) | 43434e94-7895-49d6-8251-26396389c552 |
SCIP notification number (Netherlands) | 569e0616-b301-418d-8202-50e2c8adbd85 | SCIP notification number (Poland) | 650e7ebf-b055-44db-a13c-8e0ecb3c6505 |
SCIP notification number (Romania) | 6ca3cc2a-951a-4b34-b2e7-0789662e9d64 | SCIP notification number (Sweden) | 8b5d46f4-7d00-4054-adda-8b60641730d7 |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Continuous current (max.) | 500 mA | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
Solid conductor; push-in termination | 0.75 … 4 mm2 / 18 … 12 AWG | Fine-stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5 mm2 / 22 … 14 AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5 mm2 / 18 … 14 AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
