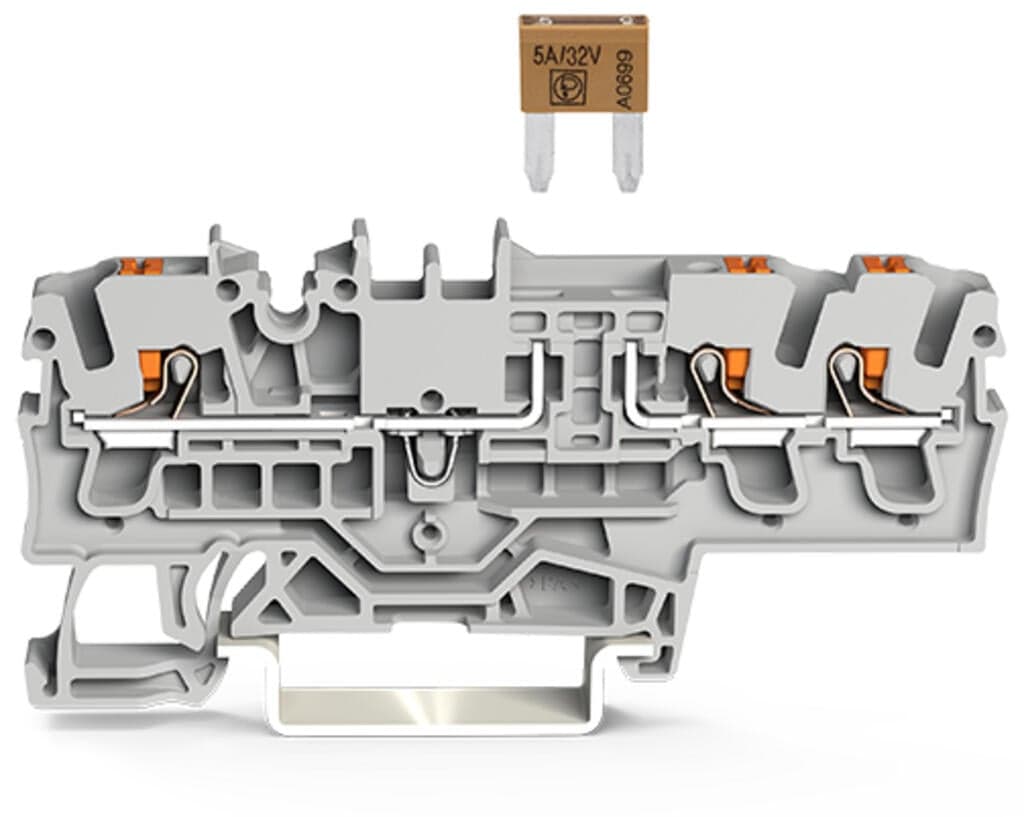

Product Model
2202-1781
Selling Points
- 1Compliant with DIN 7258-3f and ISO 8820-3: Meets international standards for mini-automotive blade-style fuses.
- 2Push-Button Operation: Easy and convenient operation with a push-button.
- 3Test Option Included: Allows for easy testing and verification of connections.
- 4Push-in CAGE CLAMP Technology: Secure and reliable connection technology.
- 5Suitable for DIN-35 Rail Mounting: Designed for easy mounting on DIN-35 rail systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 2 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 5.2?mm?/ 0.205?inches | Height | 76.8?mm?/ 3.024?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.024MJ | Actuator color | orange |
Weight | 8.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000899 |
ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966083095 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-3 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 10A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse. |
Ratings (note) 2 | Blade-style fuses: Observe touch-proof protection for 42?V and higher voltages!10 A (individual arrangement)5 A (block arrangement) | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
Fuse receptacle | pluggable | Fuse type | Mini flat plug-in fuse; 10.9 x 3.6 x 16.3 mm |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
