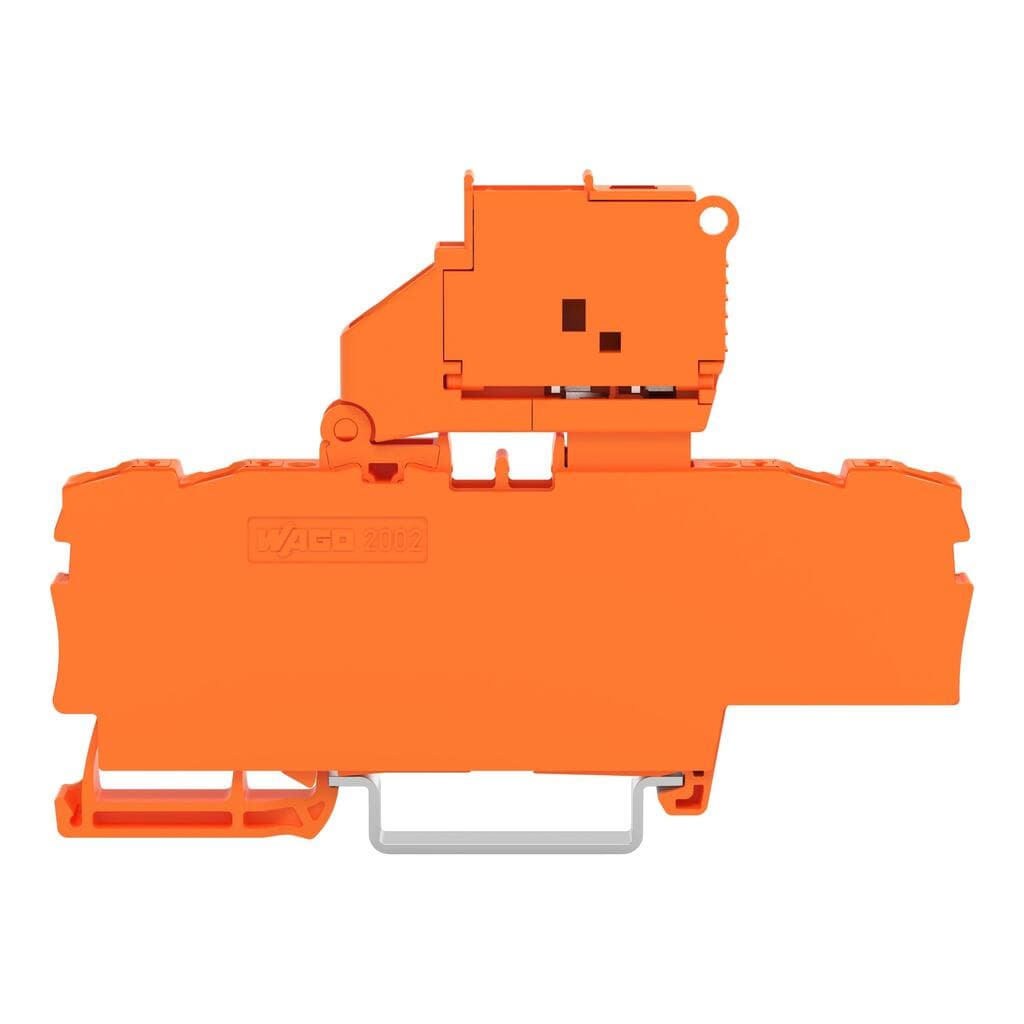

Product Model
2202-1812/1000-867
Selling Points
- 1Made from durable polyamide (PA66) for insulation and long-lasting performance.
- 2Push-in CAGE CLAMP connections for easy conductor insertion and removal.
- 3Compatible with DIN-rail 35 x 15 and 35 x 7.5, ensuring easy integration into various systems.
- 4Includes a pivoting fuse holder and blown fuse indication by LED for enhanced safety.
- 5Meets RoHS compliance with exemption (7(a) / 7(c)-I) and V-0 flammability rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 6.2?mm?/ 0.244?inches | Height | 87.5?mm?/ 3.445?inches |
Depth from upper-edge of DIN-rail | 57.6?mm?/ 2.268?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.108MJ | Actuator color | orange |
Weight | 16.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000899 |
ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966313505 |
Customs tariff number | 85369095000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 338591d3-d535-4548-a0c3-725d49e8cf48 |
SCIP notification number (Belgium) | ca5c5cf0-5d40-4fa1-83e8-cd377947fa54 | SCIP notification number (Czech Republic) | e75b1424-9516-4400-bed4-64586ec4d624 |
SCIP notification number (Denmark) | f48a03f1-458b-4795-8b88-c90f1ab6cbe4 | SCIP notification number (Finland) | 0e6fe687-5c02-4b40-b680-a28768a24252 |
SCIP notification number (Germany) | 1505b449-0863-44aa-9b36-78b3e4ceb976 | SCIP notification number (Netherlands) | 8f44e2e3-976a-4308-bc83-a1f258e56054 |
SCIP notification number (Poland) | 10673544-0ee4-45bb-844e-6943030c16f3 | SCIP notification number (Romania) | cefaa7b5-61e6-4191-b790-ba5dbb0764da |
SCIP notification number (Sweden) | a68a0910-1315-4aed-b8f5-fb3a08d17125 | Ratings per | ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc) |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 6.3A | Blown fuse indication | 120 V |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
Rated current (note) | Leakage current in case of a blown fuse: LED 2 mA | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 120V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 120V | Rated current UL (Use Group C) | 10A |
Rated voltage UL (Use Group D) | 120V | Rated voltage CSA (Use Group B) | 120V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group C) | 120V |
Rated current CSA (Use Group C) | 10A | Rated voltage CSA (Use Group D) | 120V |
Rated current CSA (Use Group D) | 10A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 275V | Rated current (Ex e II) | 6.3A |
Power loss (max.) P<sub>l (max.)</sub> (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN?60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. | Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 1.6W |
Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 1.6W | Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 2.5W |
Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 2.5W | Fuse receptacle | pivoting |
Fuse type | Cylindrical fuse; 5 x 20 mm | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
