Product Model
2202-1912/1000-867
Selling Points

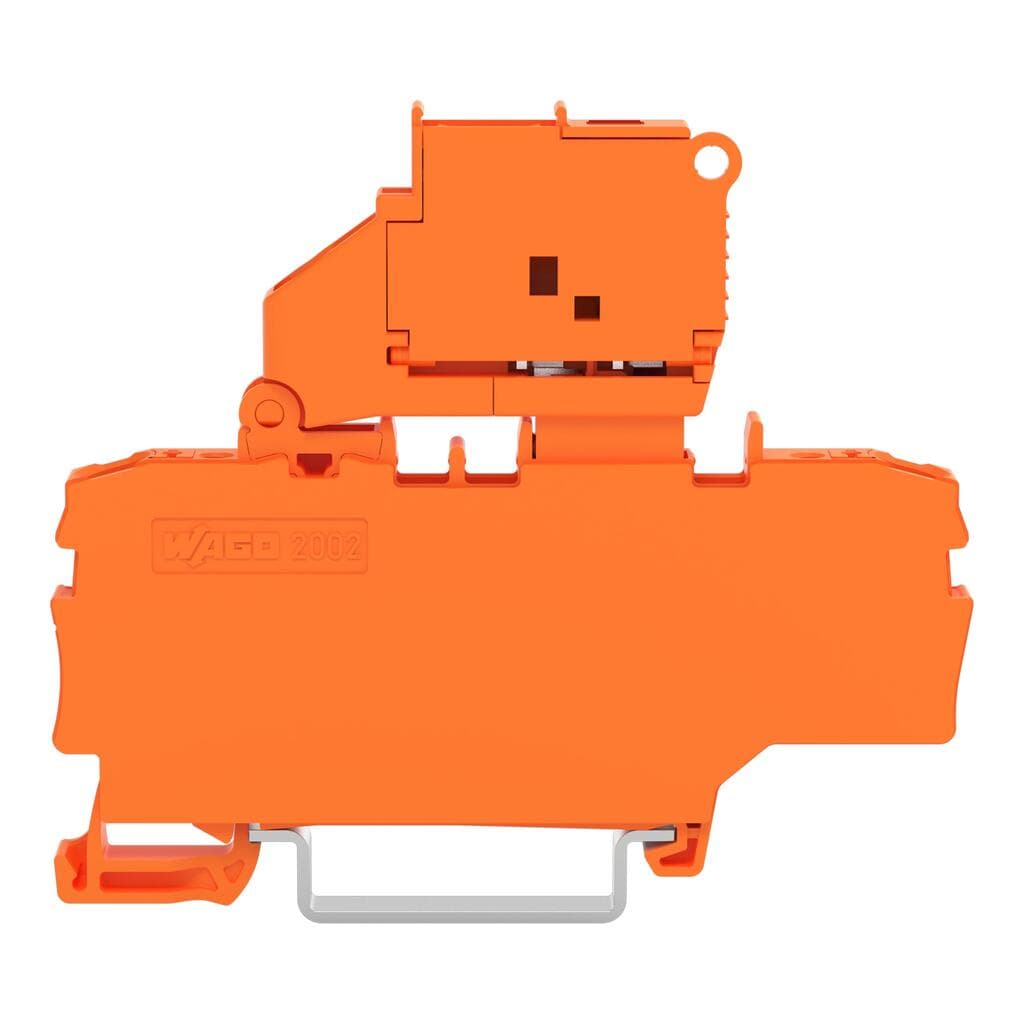

- 1Efficient Fuse Management: The WAGO 2202-1912/1000-867 features a pivoting fuse holder for easy access and replacement.
- 2Advanced Safety Features: Includes LED blown fuse indication for quick detection of faults.
- 3Durable Construction: Built with Push-in CAGE CLAMP for secure connections and 2.5 mm² wire capacity.
- 4Versatile Mounting Options: Designed for DIN-rail 35 x 15 and 35 x 7.5, ensuring compatibility with various systems.
- 5Enhanced Reliability: Suitable for 120 V applications, making it a reliable choice for industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 3 |
Width | 6.2?mm?/ 0.244?inches | Height | 72.9?mm?/ 2.87?inches |
Depth from upper-edge of DIN-rail | 57.6?mm?/ 2.268?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.319MJ | Actuator color | orange |
Weight | 14.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000899 |
ETIM 8.0 | EC000899 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966313314 |
Customs tariff number | 85369095000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | cd67e6d6-66ed-4087-b124-6e6e617bb56a |
SCIP notification number (Belgium) | 2d2e24bd-35c2-446b-a241-403d568baf25 | SCIP notification number (Czech Republic) | ed069561-57db-45ef-8cd8-231ed4682a72 |
SCIP notification number (Denmark) | 24519d87-18b8-4e00-9dbc-5d7af4ad7e81 | SCIP notification number (Finland) | 8153f749-aaa1-413a-990d-a5275547f73a |
SCIP notification number (Germany) | 5541652a-9e42-4380-876b-9d88e48c5ce4 | SCIP notification number (Netherlands) | 5d46a4e3-d7dc-4713-9079-bb631ad6b927 |
SCIP notification number (Poland) | 669f87b9-aa16-4f54-a2e6-265ee036bad8 | SCIP notification number (Romania) | 8c1bdb28-14b0-40ec-9541-3b5743fdf217 |
SCIP notification number (Sweden) | 743a6692-71fe-46d3-a57e-1ec273b74c94 | Ratings per | ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc) |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 6.3A | Blown fuse indication | 120 V |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
Rated current (note) | Leakage current in case of a blown fuse: LED 2 mA | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 120V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 120V | Rated current UL (Use Group C) | 10A |
Rated voltage UL (Use Group D) | 120V | Rated voltage CSA (Use Group B) | 120V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group C) | 120V |
Rated current CSA (Use Group C) | 10A | Rated voltage CSA (Use Group D) | 120V |
Rated current CSA (Use Group D) | 10A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 275V | Rated current (Ex e II) | 6.3A |
Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 1.6W | Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 1.6W |
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 2.5W | Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 2.5W |
Fuse receptacle | pivoting | Fuse type | Cylindrical fuse; 5 x 20 mm |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
