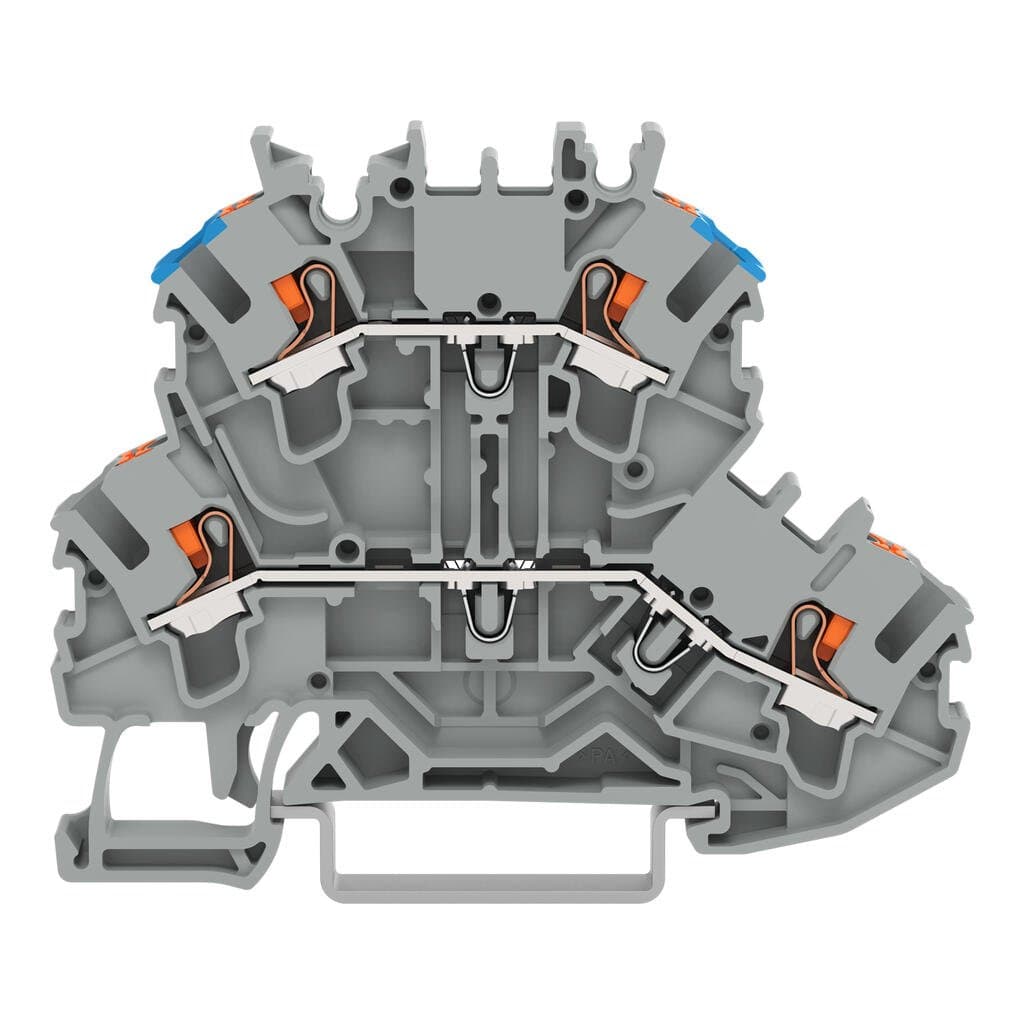

Product Model
2202-2203
Selling Points
- 1Suitable for Ex e II applications: Ensures safe use in hazardous environments.
- 2Push-in CAGE CLAMP technology: Easy and secure conductor connection.
- 3DIN-rail mounting: Convenient installation on standard DIN rails.
- 4Gray color with blue conductor entry: Clear visual distinction for easy identification.
- 5Compliant with IEC/EN 60947-7-1 and RoHS: Meets international safety and environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Number of jumper slots | 4 |
Width | 5.2 mm / 0.205 inches | Height | 69.7 mm / 2.744 inches |
Depth from upper-edge of DIN-rail | 51.7 mm / 2.035 inches | Potential Marking | L/N |
Mounting type | DIN-rail 35 x 15 | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.221MJ |
Weight | 10.2g | Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50 pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966426380 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 23A |
Current at conductor cross-section (max.) mm2 | 28A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 23A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Total number of connection points | 2 | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4 mm2 / 22 … 12 AWG | Solid conductor; push-in termination | 1 mm2 / 18 AWG |
Stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG | Fine-stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
Fine-stranded conductor; with insulated ferrule | 1 … 2.5 mm2 / 18 … 12 AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 mm2 / 18 AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 2 |
Specifications may be subject to change without notice
