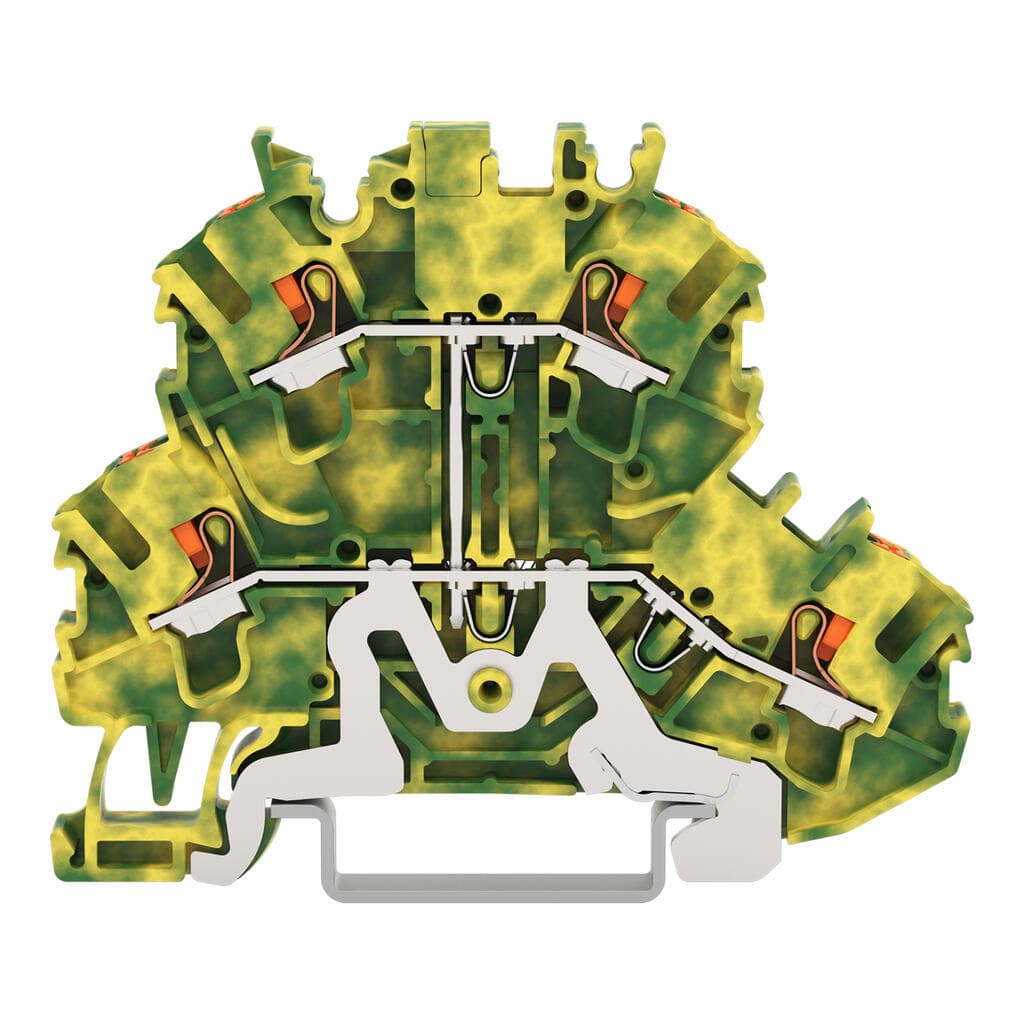

Product Model
2202-2207
Selling Points
- 1Push-in CAGE CLAMP Technology: Secure and easy-to-use connection system.
- 2Ex e II Application Suitability: Meets stringent safety standards for hazardous environments.
- 3DIN-Rail Mounting Compatibility: Ideal for DIN-rail 35 x 15 and 35 x 7.5 mounting.
- 4Internal Commoning: Simplifies wiring with internal commoning feature.
- 5Green-Yellow Color Coding: Easy identification of conductors in a busy electrical setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Number of jumper slots | 3 |
Width | 5.2 mm / 0.205 inches | Height | 69.7 mm / 2.744 inches |
Depth from upper-edge of DIN-rail | 51.7 mm / 2.035 inches | Potential Marking | PE |
Mounting type | DIN-rail 35 x 15 | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.224MJ |
Weight | 13.6g | Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50 pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966431490 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-2 | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 2 |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
Solid conductor; push-in termination | 1 mm2 / 18 AWG | Stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
Fine-stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG | Fine-stranded conductor; with insulated ferrule | 1 … 2.5 mm2 / 18 … 12 AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 mm2 / 18 AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12 mm / 0.39 … 0.47 inches | Wiring direction | Front-entry wiring |
Number of connection points 2 | 2 |
Specifications may be subject to change without notice
