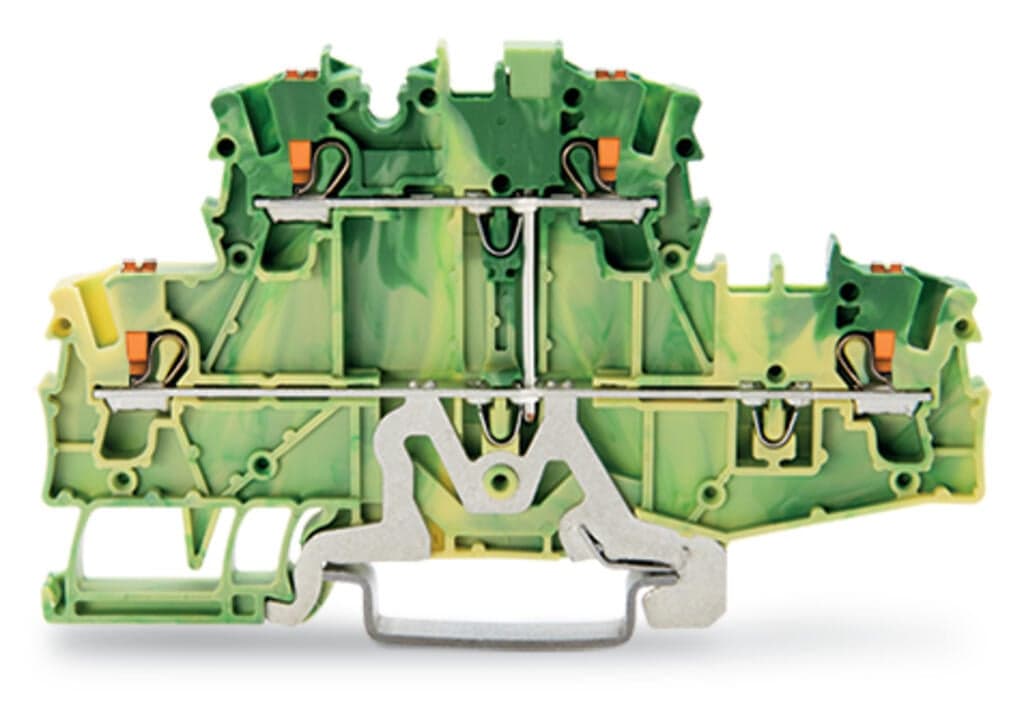

wago 2202-2707

Selling Points

  • 1Suitable for Ex e II Applications: Designed for hazardous environments, ensuring safety and reliability.
  • 2Internal Commoning: Simplifies wiring with internal connections, reducing complexity.
  • 3Push-In CAGE CLAMP Connections: Easy and secure wire connections with minimal effort.
  • 4DIN-Rail Mounting: Conveniently mounts on DIN-rail 35 x 15 and 35 x 7.5, saving space.
  • 5Green-Yellow Color Coding: Clearly identifies the terminal block, enhancing visibility and organization.
Product Details
2202-2707
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
4
Total number of potentials
1
Number of levels
2
Number of jumper slots
3
Width
5.2?mm?/ 0.205?inches
Height
92.5?mm?/ 3.642?inches
Depth from upper-edge of DIN-rail
51.7?mm?/ 2.035?inches
Potential Marking
PE
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
green-yellow
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.04MJ
Actuator color
orange
Weight
15.9g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
ETIM 9.0
EC000901
ETIM 8.0
EC000901
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
DE
GTIN
4055143844482
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)
Reference hazardous areas
See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Power loss, per pole (potential)
0.766W
Rated current I<sub>N</sub> for specified power loss
24A
Resistance value for specified, current-dependent power loss
0.001Ω
Connection technology
Push-in CAGE CLAMP?
Actuation type
Push-button
Connectable conductor materials
Copper
Nominal cross-section
2.5 mm2
Solid conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination
0.75 … 4?mm2?/ 18 … 12?AWG
Fine-stranded conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination
1 … 2.5?mm2?/ 18 … 14?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
10 … 12?mm?/ 0.39 … 0.47?inches
Wiring direction
Front-entry wiring

Specifications may be subject to change without notice
