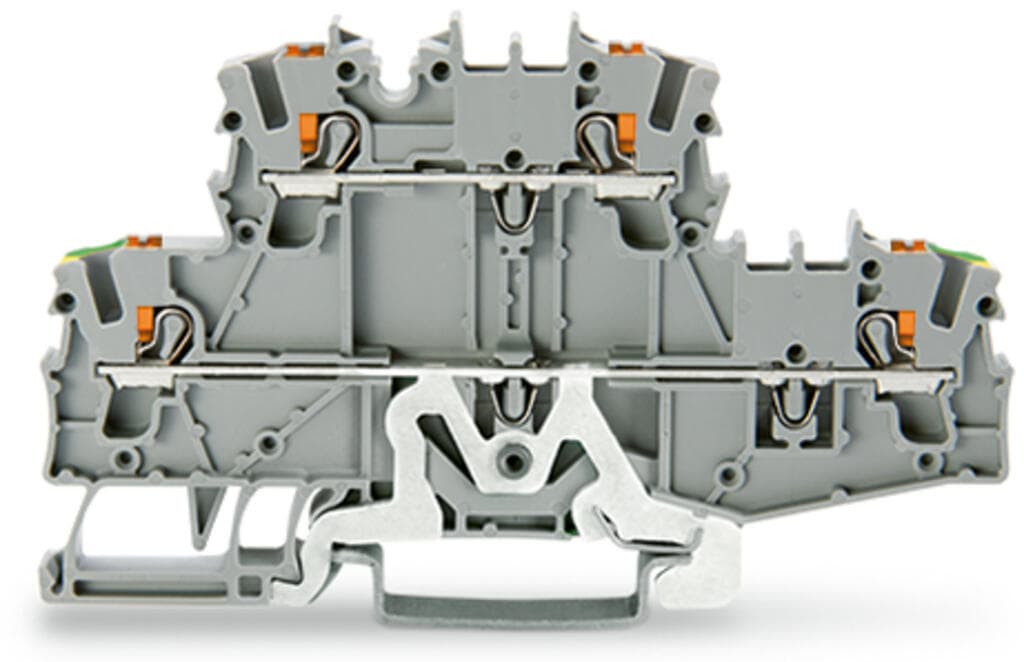

Product Model
2202-2727
Selling Points
- 1Designed for hazardous environments, ensuring safety and reliability.
- 2Provides ample space for multiple connections, enhancing wiring efficiency.
- 3Easy to use and operate, reducing installation time and effort.
- 4Conveniently mounts on standard DIN-rails, simplifying installation and maintenance.
- 5Constructed with polyamide (PA66) for durability and insulation, meeting UL and CSA standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Number of jumper slots | 4 |
Width | 5.2?mm?/ 0.205?inches | Height | 92.5?mm?/ 3.642?inches |
Depth from upper-edge of DIN-rail | 51.7?mm?/ 2.035?inches | Potential Marking | PE/L |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.032MJ |
Actuator color | orange | Weight | 15.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143844659 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 24A | Current at conductor cross-section (max.) mm2 | 28A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 24A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 24A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 17.5A | Rated current (Ex e II) with jumper | 17A |
Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
