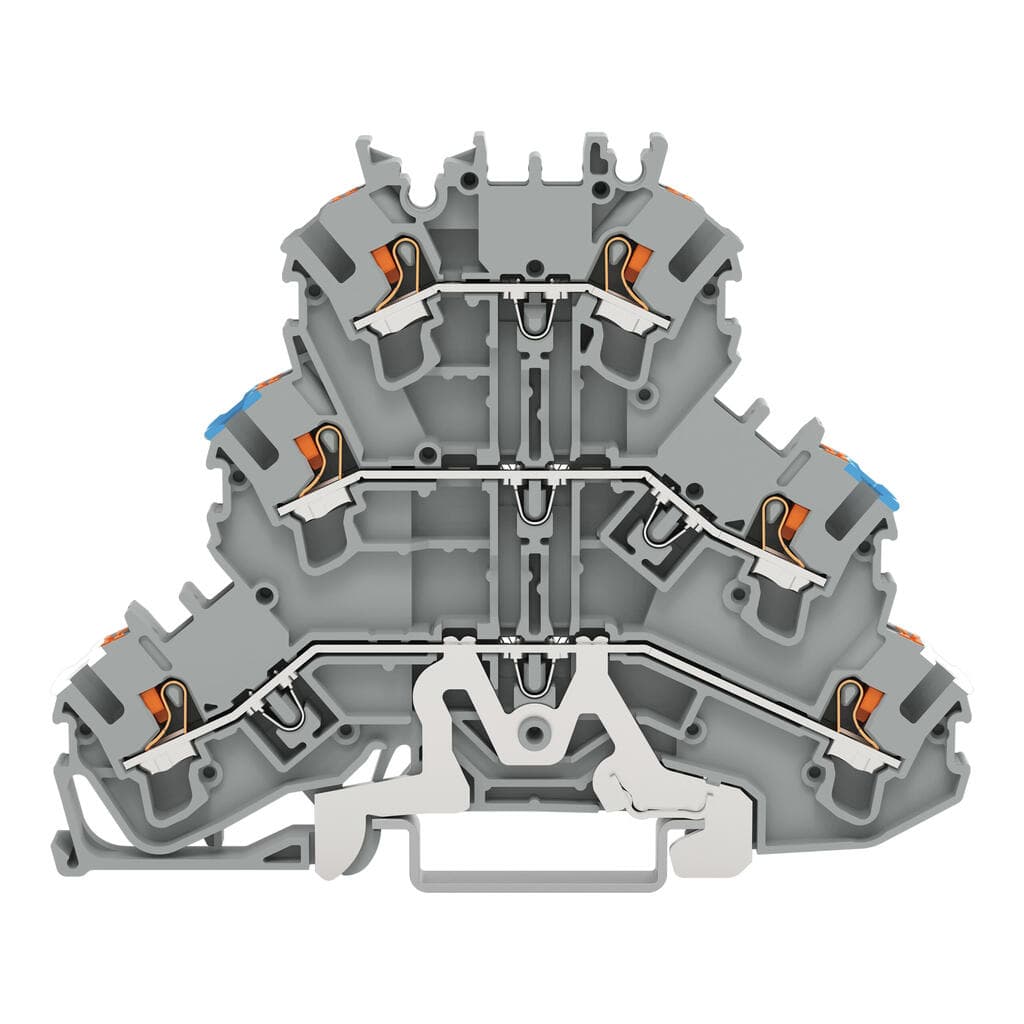

Product Model
2202-3218
Selling Points
- 1High-Current Capability: Supports currents up to 22A or 26A.
- 2Triple-Deck Design: Accommodates 1 feed-through pole, neutral-through, and shield-through connections.
- 3Push-in CAGE CLAMP: Easy and secure wire connections with minimal labor.
- 4DIN Rail Mounting: Compatible with DIN rail 35 x 15 and 35 x 7.5.
- 5Versatile Wire Sizes: Supports wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Number of levels | 3 | Number of jumper slots | 6 |
Width | 5.2?mm?/ 0.205?inches | Height | 93.6?mm?/ 3.685?inches |
Depth from upper-edge of DIN-rail | 69.5?mm?/ 2.736?inches | Potential Marking | Shield/N/L |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.347MJ |
Actuator color | orange | Weight | 20.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966194128 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 22A | Current at conductor cross-section (max.) mm2 | 26A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated voltage EN (Ex e II) | 440V |
Rated current (Ex e II) | 19A | Rated current (Ex e II) with jumper | 17A |
Power loss, per pole (potential) | 0.644W | Rated current I<sub>N</sub> for specified power loss | 22A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Total number of connection points | 3 | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Number of connection points 2 | 3 |
Specifications may be subject to change without notice
